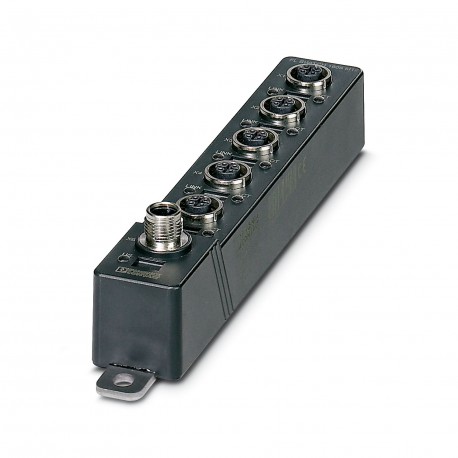

FL SWITCH 1605 M12 2700200 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH 1605 M12

2700200

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Ethernet switch, 5 front ethernet ports in M12 format, automatic detection of data transmission rate of 10 or 100 Mbits/s, coupling of network segments with different bit rates, autocrossing function, IP67 protection type Unmanaged Switch 1600, 5 Ports M12 10/100 Mbit/s, Degree of Protection: IP65/IP66/IP67, PROFINET Conformance-Class A

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2700200
Packing unit1 pc
Catalog pagePage 399 (C-6-2017)
GTIN4046356499781
Weight per Piece (excluding packing)281.700 g
Custom tariff number85176200
Country of originDE (Germany)

Dimensions

Dimensional drawing
CaptionSide view (dimensions in mm)
Width30 mm
Height200 mm
Depth41 mm

Ambient conditions

Degree of protectionIP65
IP66
IP67
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Permissible humidity (operation)10 % ... 95 %
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Air pressure (operation)86 kPa ... 108 kPa (2000 m above sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (3500 m above sea level)

Interfaces

Interface 1Ethernet
No. of ports5 (M12 socket)
Note on the connection methodD-coded
Transmission physicsTwisted pair connection
Transmission speed10/100 Mbps
Transmission length100 m (per segment)
Signal LEDsData receive, link status

Function

Basic functionsUnmanaged switch/auto negotiation, complies with standard IEEE 802.3, store-and-forward switching mode, 2 priority classes according to IEEE802.1p, PTCP filter
Additional functionsAutonegotiation
PROFINET conformance classConformance-Class A
Status and diagnostic indicatorsLEDs: US (power supply), 2 LEDs per Ethernet port (Link and Activity)

Network expansion parameters

Cascading depthNetwork, linear, and star structure: any
Maximum conductor length (twisted pair)100 m

Supply voltage

Supply voltage24 V DC (M12 connector)
Residual ripple3.6 VPP
Supply voltage range9 V DC ... 32 V DC
Typical current consumption40 mA (at US= 24 V DC)
Max. current consumption40 mA (+ 10 mA per port)
Current consumption40 mA ... 80 mA (at 24 V DC)

General

Mounting typeWall mounting
Type AXStand-alone
Net weight281.7 g
Housing materialPBT
Material base plateHigh-grade steel (1.4301/1.4016)
NoteNOTE: Meet noise immunity requirements
Connect FE using a mounting screw when mounting on a conductive surface. When mounting on a non-conductive surface, FE is connected using the mounting screw via a cable lug.
MTTF302.5 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
156.52 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
40.43 Years (SN 29500 standard, temperature 55 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test resultOperation: 30g, 6 ms continuous testing, 5g 30 ms continuous testing
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test resultOperation/Storage/Transport: 5g, 150 Hz, Criterion 3
Type of testFree fall in acc. with IEC 60068-2-32
Test result0.5 m
Type of testVibration resistance according to IEC 61373, EN 61373
Test resultCategory 1, Class B
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2
Connection in acc. with standardCUL

Classifications


ETIM for 2700200 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 5
Mounting method (EF000003) Other
Manageable (EF004912) No
Degree of protection (IP) (EF005474) IP65
