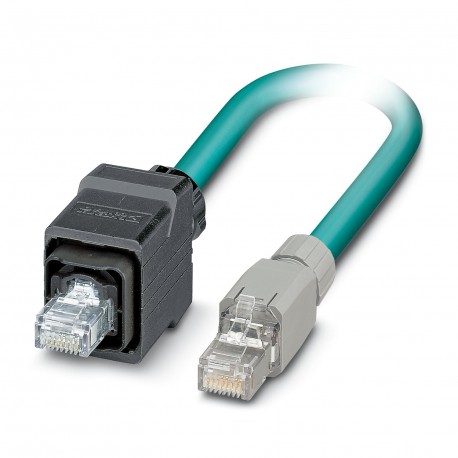

PHOENIX CONTACT VS-PPC/PL-IP20-94C-LI/2,0 VS-PPC/PL-IP20-94C-LI/2,0 1412972 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-PPC/PL-IP20-94C-LI/2,0 1412972 PHOENIX CONTACT Network cable

VS-PPC/PL-IP20-94C-LI/2,0

1412972

PHOENIX CONTACT

1 Pcs.

Network cable Ethernet cable confec., pad, 4 pairs, AWG 26 suitable for supply chains. energy (19 wires), RAL 5021 (aqua blue), conec. RJ45/IP67 male push pull carc. of plastic in conec. RJ45/IP20 male, Line, long. 2 m Assembled Ethernet cable, shielded, 4-pair, AWG 26 suitable for use with drag chain (19-wire), RAL 5021 (sea blue), RJ45 connector/IP67 push/pull plastic housing on RJ45 connector/IP20, line, length 2 m

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions8
No. of cable outlets1
Number of slots1
Shieldedyes
Cable outletstraight
Data management status
Article revision14
Insulation characteristics
Degree of pollution2
Electrical properties
Transmission mediumCopper
Transmission speed1 Gbps
Wave impedance100 Ω
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 200
Material specifications
Flammability rating according to UL 94V2
Outer sheath, materialPUR
Conductor materialBare Cu litz wires
Connector
Connection 1
TypePlug straight RJ45
Locking typePush Pull
MaterialPlastic
Degree of protectionIP67
Connection 2
TypePlug straight RJ45
MaterialPlastic
Degree of protectionIP20
Cable/line
Cable length2.00 m
Ethernet drag chain CAT5, 4-pair [94C]
Dimensional drawingvilrsswkcf.jpg
Shieldedyes
UL AWM Style20963 (80°C/30 V)
Cable weight57 kg/km
Cable typeEthernet drag chain CAT5, 4-pair
Short symbol9YC(ST)11Y
Cable type (abbreviation)94C
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Cable structure4x2xAWG26/19, S/UTP
External cable diameter6.90 mm +0.1 mm ... 0.2 mm
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Thickness, outer sheath0.85 mm
Conductor materialBare Cu litz wires
Conductor structure signal line19x 0.10 mm
AWG signal line26
Conductor cross section4x 2x 0.14 mm²
Material wire insulationPP
Wire diameter incl. insulation1 mm
Single wire, colorwhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twistFour pairs and four fillers to the core
ShieldingTinned copper braided shield
Optical shield covering90 %
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700.00 V (50 Hz, 1 min.)
Cable insulation resistance≥ 500 MΩ*km
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 50 nF/km (at 1 kHz)
Signal runtime5.3 ns/m
Tensile strength≤ 100 N
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Number of bending cycles5000000
Minimum bending radius, drag chain applications7,5 x D
Traversing rate3 m/s
Acceleration5 m/s²
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Return attenuation (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with EN 60811-2-1
Flame resistanceaccording to IEC 60332-1-2
Ambient temperature (operation)-20 °C ... 80 °C (Cable, flexible installation)
-40 °C ... 80 °C (cable, fixed installation)

ETIM for 1412972 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Degree of protection (IP) (EF005474) IP67
