VS-PPC/ME-IP20-94F-LI/5,0 1415555 PHOENIX CONTACT Network cable

VS-PPC/ME-IP20-94F-LI/5,0

1415555

PHOENIX CONTACT

1 Pcs.

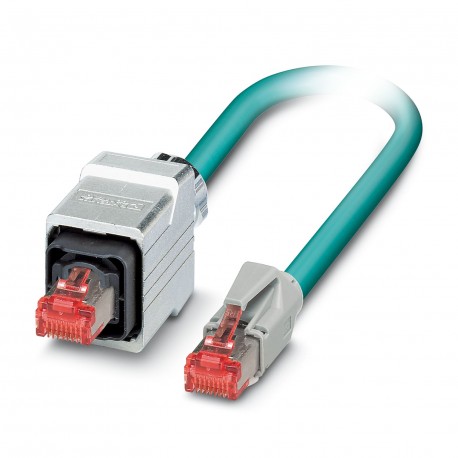

Network cable Ready-made Ethernet cable, CAT6, shielded, 4 pairs, flexible AWG 26 (7 wires), RAL 5021 (aqua blue), RJ45/IP67 plug, push-pull, metal housing, to RJ45/IP20 plug, Line, length 5 m Assembled Ethernet cable, CAT6, shielded, 4-pair, AWG 26 stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67 push-pull metal housing on RJ45 plug/IP20, line, length 5 m

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions8
No. of cable outlets1
Shieldedyes
Cable outletstraight
Data management status
Article revision09
Insulation characteristics
Degree of pollution2
Electrical properties
Transmission mediumCopper
Transmission characteristics (category)CAT6
Transmission speed1 Gbps
Wave impedance100 Ω
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 200
Material specifications
Flammability rating according to UL 94V2
Outer sheath, materialPUR
Conductor materialBare Cu litz wires
Connector
Connection 1
TypePlug straight RJ45
Locking typePush Pull
MaterialMetal
Degree of protectionIP67
Connection 2
TypePlug straight RJ45
MaterialPlastic
Degree of protectionIP20
Cable/line
Cable length5.00 m
Ethernet 10 Gbit [94F]
Dimensional drawingujuolcztrd.jpg
Shieldedyes
UL AWM Style20963 (80°C/30 V)
Cable weight42 kg/km
Cable typeEthernet 10 Gbit
Short symbol02YSC11Y
Cable type (abbreviation)94F
Signal type/categoryEthernet CAT6A, 10 Gbps
Cable structure4x2xAWG26/7; S/FTP
External cable diameter6.40 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Thickness, outer sheath0.65 mm
Conductor materialBare Cu litz wires
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section4x 2x 0.14 mm²
Material wire insulationFoamed PE
Wire diameter incl. insulation1.04 mm
Single wire, colorwhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined foil
Overall twist4 pairs for core
ShieldingTinned copper braided shield
Optical shield covering70 %
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700.00 V (50 Hz, 1 min.)
Cable insulation resistance≥ 500 MΩ*km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Loop resistance≤ 290.00 Ω/km
Cable capacity47 nF/km
Signal runtime5.13 ns/m
Tensile strength≤ 100 N
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Near end crosstalk attenuation (NEXT)75.3 dB (with 1 MHz)
66.3 dB (at 4 МHz)
61.8 dB (at 8 МHz)
60.3 dB (at 10 MHz)
57.2 dB (at 16 MHz)
55.8 dB (at 20 МHz)
54.3 dB (at 25 MHz)
52.8 dB (at 31.25 МHz)
48.4 dB (at 62.5 МHz)
45.3 dB (at 100 MHz)
40.8 dB (at 200 MHz)
39.3 dB (at 250 MHz)
38.1 dB (at 300 MHz)
38.1 dB (at 400 MHz)
38.1 dB (at 500 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)72.3 dB (with 1 MHz)
63.3 dB (at 4 МHz)
58.8 dB (at 8 МHz)
57.3 dB (at 10 MHz)
54.2 dB (at 16 MHz)
52.8 dB (at 20 МHz)
51.3 dB (at 25 MHz)
49.9 dB (at 31.25 МHz)
45.4 dB (at 62.5 МHz)
42.3 dB (at 100 MHz)
37.8 dB (at 200 MHz)
36.3 dB (at 250 MHz)
35.1 dB (at 300 MHz)
33.3 dB (at 400 MHz)
31.8 dB (at 500 MHz)
Return attenuation (RL)20 dB (with 1 MHz)
23 dB (at 4 МHz)
24.5 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
24.2 dB (at 25 MHz)
23.3 dB (at 31.25 МHz)
20.7 dB (at 62.5 МHz)
19 dB (at 100 MHz)
16.4 dB (at 200 MHz)
15.6 dB (at 250 MHz)
15.6 dB (at 300 MHz)
15.6 dB (at 400 MHz)
15.6 dB (at 500 MHz)
Shield attenuation≥ 80.00 dB (at 30 ... 100 MHz)
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with DIN EN 60811-2-1
Flame resistanceaccording to IEC 60332-1-2
in accordance with UN ECE-R 118.03
Ambient temperature (operation)-20 °C ... 80 °C (Cable, flexible installation)
-40 °C ... 80 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
IP67
IP67/IP20
Ambient temperature (operation)-25 °C ... 60 °C (cable, fixed installation)
-10 °C ... 50 °C (Cable, flexible installation)

ETIM for 1415555 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Degree of protection (IP) (EF005474) Other
