PHOENIX CONTACT VS-M12MS-OE-94C-LI/2,0 VS-M12MS-OE-94C-LI/2,0 1412794 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-M12MS-OE-94C-LI/2,0 1412794 PHOENIX CONTACT Network cable

VS-M12MS-OE-94C-LI/2,0

1412794

PHOENIX CONTACT

1 Pcs.

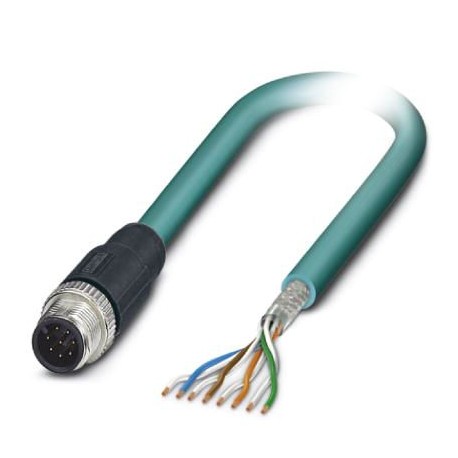

Network cable Network cable, CAT5 Ethernet (1 GBit/s), 8-pole, M12 straight connector, encoding: A/IP67, to free cable end, cable length: 2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1412794
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 303 (PC-2011)
GTIN4046356475679
Weight per Piece (excluding packing)132.100 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65
IP67

General data

Rated voltage30 V AC
30 V DC
Number of positions8
Signal type/categoryEthernet CAT5 (on the basis of IEC 11801), 1 Gbps
Degree of pollution3
Alternative short product descriptionEthernet cable

Characteristics head 1

Head typePlug straight M12
Colorblack

Characteristics head 2

Head typefree cable end

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typeEthernet drag chain CAT5
Cable type (abbreviation)94C
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Cable structure4x2xAWG26/19; S/UTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line19x 0.10 mm
Core diameter including insulation1 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twistFour pairs and four fillers to the core
ShieldingTinned copper braided shield
Optical shield covering90 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness0.85 mm
External cable diameter D6.9 mm +0.1 mm ... 0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Number of bending cycles5000000
Minimum bending radius, drag chain applications7,5 x D
Traversing rate3 m/s
Acceleration5 m/s²
Tensile strength GRP≤ 100 N
Cable weight57 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 50 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications


ETIM for 1412794 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
