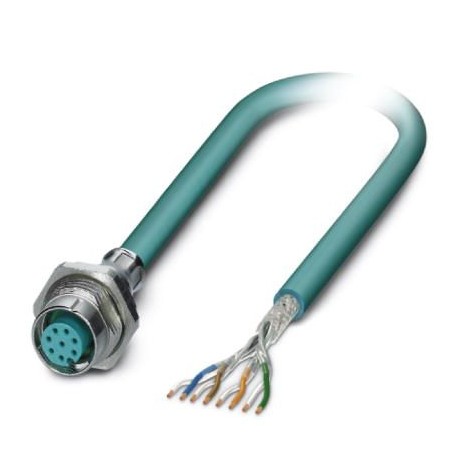

PHOENIX CONTACT VS-M12FSBP-OE-94C-LI/2,0 VS-M12FSBP-OE-94C-LI/2,0 1412820 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-M12FSBP-OE-94C-LI/2,0 1412820 PHOENIX CONTACT Network cable

VS-M12FSBP-OE-94C-LI/2,0

1412820

PHOENIX CONTACT

1 Pcs.

Network cable Conect. plug. to be apar. wall poster., Ethernet, 8-pole, PUR, water blue RAL5021, Built-in mounting female straight M12, coding: A SPEEDCON / IP67, at free cable end, cable length: 2 m, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1260718

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1412820
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 303 (PC-2011)
GTIN4046356475686
Weight per Piece (excluding packing)136.100 g
Custom tariff number85444290
Country of originDE (Germany)

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (cable, flexible installation)

General data

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C2 A
Rated voltage30 V
Number of positions8
Overvoltage categoryII
Degree of pollution3
Alternative short product descriptionEthernet cable
Contact materialCuZn
Contact carrier materialPA 6.6
Contact surface materialNi/Au

Characteristics head 1

CodingA (Standard)

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typeEthernet drag chain CAT5
Cable type (abbreviation)94C
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Cable structure4x2xAWG26/19; S/UTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line19x 0.10 mm
Core diameter including insulation1 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twistFour pairs and four fillers to the core
ShieldingTinned copper braided shield
Optical shield covering90 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness0.85 mm
External cable diameter D6.9 mm +0.1 mm ... 0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Number of bending cycles5000000
Minimum bending radius, drag chain applications7,5 x D
Traversing rate3 m/s
Acceleration5 m/s²
Tensile strength GRP≤ 100 N
Cable weight57 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 50 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Environmental Product Compliance

China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1412820 Data networking products (EC001262)
Feature Name Feature Value
Cable type (EF000081) S/UTP
Category (EF001619) Other
Length (EF001438) 2 m
Type of connector connection 1 (EF002505) Other
Type of connector connection 2 (EF002506) Other
Colour outer sheath (EF001618) Other
Anti-kink sleeve (EF002435) Moulded-on
Locking lever (EF005199) No
Oil resistant according to EN IEC 60811-404 (EF009770) No
Cable construction (EF003433) Other
Pin assignment (EF000940) 1:1
Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) No
Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) No
