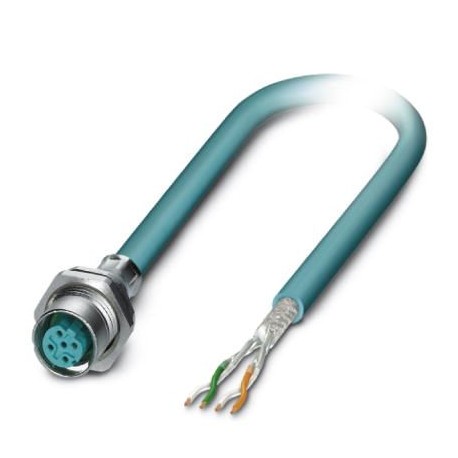

PHOENIX CONTACT VS-M12FSBP-OE-93E-LI/2,0 VS-M12FSBP-OE-93E-LI/2,0 1405866 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-M12FSBP-OE-93E-LI/2,0 1405866 PHOENIX CONTACT Network cable

VS-M12FSBP-OE-93E-LI/2,0

1405866

PHOENIX CONTACT

1 Pcs.

Network cable Conect. plug. to be apar. poster wall, CAT5 Ethernet (100 MBit/s), Ethernet, 4-pole, PUR, water blue RAL5021, shielded, Plug, straight, M12-SPEEDCON, free cable end, Rear mounting, Cable connection, cable length: 2 m, CAT5 flexible Ethernet, 2 pairs, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1238737

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1405866
Packing unit1 pc
Catalog pagePage 403 (C-2-2017)
GTIN4046356475976
Weight per Piece (excluding packing)113.000 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-40 °C ... 70 °C (Plug / socket)
-50 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C (cable, fixed installation)

General data

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Rated voltage250 V
Number of positions4
Signal type/categoryEthernet CAT5 (IEC 11801:2002), 100 Mbps
Overvoltage categoryII
Degree of pollution3
Alternative short product descriptionEthernet cable
Contact materialCuZn
Contact carrier materialPA 6.6
Contact surface materialNi/Au

Characteristics head 1

Head typeFlush-type socket straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)4
CodingD (Data)

Characteristics head 2

Head typefree cable end

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typePUR ETHERNET 2x2 FLEX
Cable type (abbreviation)93E
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Cable structure2x2xAWG26/7; SF/UTP
Conductor cross section2x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation0.98 mm
Wire colorswhite/orange-orange, white/green-green
Twisted pairs2 cores to the pair
Overall twistTwo pairs with two fillers to the core
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering70 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness1.2 mm
External cable diameter D6.4 mm ±0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Tensile strength GRP≤ 80 N
Cable weight42 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialBare Cu litz wires
Standards/specificationsElectrical requirements EN 50288-2-2
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 45 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V (Peak value, not for high-power applications)
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Current carrying capacity of cable2 A (according to DIN VDE 0891-1)
Flame resistanceaccording to IEC 60332-1-2
in acc. to UL VW1
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1405866 Data networking products (EC001262)
Feature Name Feature Value
Cable type (EF000081) SF/FTP
Category (EF001619) 5
Length (EF001438) 2 m
Type of connector connection 1 (EF002505) Other
Type of connector connection 2 (EF002506) Other
Colour outer sheath (EF001618) Other
Locking lever (EF005199) No
Oil resistant according to EN IEC 60811-404 (EF009770) No
Cable construction (EF003433) Other
Pin assignment (EF000940) 1:1
Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) No
Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) No
