View larger
Images are for illustrative purposes only. Please refer to data sheet for details

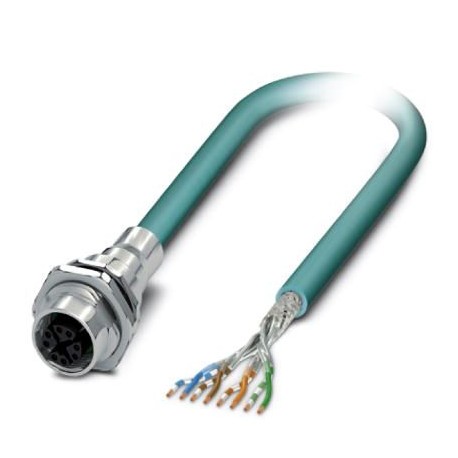

VS-FSBPXS-OE-94F/2,0 1424151 PHOENIX CONTACT Network cable
VS-FSBPXS-OE-94F/2,0
1424151
PHOENIX CONTACT
1 Pcs.
Network cable
Conect. plug. to be apar. poster wall, CAT6A Ethernet (10 GBit/s) CAT6A, 8-pole, PUR, water blue RAL5021, shielded, Built-in mounting female, straight, M12-SPEEDCON, encoding: X, free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 2 m, Ethernet 10 GBit, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239448
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424151 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 407 (C-2-2017) |
| GTIN | 4046356692632 |
| Weight per Piece (excluding packing) | 116.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 1 |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable outlet | straight |
| Length of cable | 2 m |
| Insulation resistance | ≥ 100 MΩ |
| Degree of protection | IP67 |
| IP65/IP67 | |
| No. of cable outlets | 1 |
| Type of note | Notes on operation |
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| -40 °C ... 90 °C (without mechanical actuation) | |
| Degree of protection | IP65 |
| IP67 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | PPA |
| Contact material | CuZn |
| Contact surface material | Au |
| Cable gland material | Zinc die-cast, nickel-plated |
| Sealing material | FKM |
Electrical characteristics
| Rated surge voltage | 0.8 kV |
|---|---|
| Insulation resistance | ≥ 100 MΩ |
| Transmission characteristics (category) | CAT6A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027060300eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 2 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Back wall mounting |
| Housing material (EF001596) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 50 V |
| With shield connection (EF002535) | Yes |
| Screw-in thread (EF012303) | M12 |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
