VS-FSBPXS-OE-94F/0,5 1424135 PHOENIX CONTACT Network cable

VS-FSBPXS-OE-94F/0,5

1424135

PHOENIX CONTACT

1 Pcs.

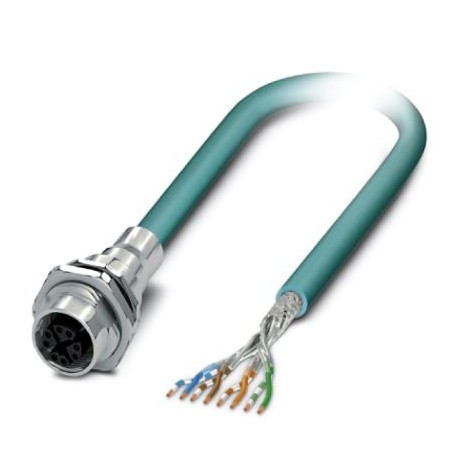

Network cable Conect. plug. to be apar. poster wall, CAT6A Ethernet (10 GBit/s) CAT6A, 8-pole, PUR, water blue RAL5021, shielded, Built-in mount female, straight, M12-SPEEDCON, encoding: X, free cable end, Rear mount, M16 x 1.5, Bus line, cable length: 0.5 m, Ethernet 10 GBit, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1237433

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1424135
Packing unit1 pc
Catalog pagePage 407 (C-2-2017)
GTIN4046356692618
Weight per Piece (excluding packing)47.800 g
Custom tariff number85444290
Country of originDE (Germany)

Mechanical characteristics

Number of positions8
Number of slots1
Insertion/withdrawal cycles≥ 100
Cable outletstraight
Length of cable0.5 m
Insulation resistance≥ 100 MΩ
Degree of protectionIP67
IP67, when in locked state
No. of cable outlets1
Type of noteNotes on operation
NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-40 °C ... 90 °C (without mechanical actuation)
Degree of protectionIP65
IP67

Material data

Flammability rating according to UL 94V0
Contact carrier materialPPA
Contact materialCuZn
Contact surface materialAu
Cable gland materialZinc die-cast, nickel-plated
Sealing materialFKM

Electrical characteristics

Rated surge voltage0.8 kV
Insulation resistance≥ 100 MΩ
Transmission characteristics (category)CAT6A

Standards and Regulations

Flammability rating according to UL 94V0

Line characteristics

Cable typeEthernet 10 Gbit
Cable abbreviation02YSC11Y
UL AWM style20963 (80°C/30 V)
Cable structure4x2xAWG26/7; S/FTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation1.04 mm
External cable diameter6.4 mm ±0.2 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
External sheath, colorwater blue RAL 5021
Transmission mediumCopper
Insulation resistance≥ 500 MΩ*km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)75.3 dB (with 1 MHz)
66.3 dB (at 4 МHz)
61.8 dB (at 8 МHz)
60.3 dB (at 10 MHz)
57.2 dB (at 16 MHz)
55.8 dB (at 20 МHz)
54.3 dB (at 25 MHz)
52.8 dB (at 31.25 МHz)
48.4 dB (at 62.5 МHz)
45.3 dB (at 100 MHz)
40.8 dB (at 200 MHz)
39.3 dB (at 250 MHz)
38.1 dB (at 300 MHz)
36.3 dB (at 400 MHz)
34.8 dB (at 500 MHz)
Wave attenuation3.1 dB (with 1 MHz)
5.7 dB (at 4 МHz)
8 dB (at 8 МHz)
8.9 dB (at 10 MHz)
11.2 dB (at 16 MHz)
12.6 dB (at 20 МHz)
14.1 dB (at 25 MHz)
15.8 dB (at 31.25 МHz)
22.5 dB (at 62.5 МHz)
28.7 dB (at 100 MHz)
41.4 dB (at 200 MHz)
46.6 dB (at 250 MHz)
51.4 dB (at 300 MHz)
60.1 dB (at 400 MHz)
67.9 dB (at 500 MHz)
Return Loss20 dB (with 1 MHz)
23 dB (at 4 МHz)
24.5 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
24.2 dB (at 25 MHz)
23.3 dB (at 31.25 МHz)
20.7 dB (at 62.5 МHz)
19 dB (at 100 MHz)
16.4 dB (at 200 MHz)
15.6 dB (at 250 MHz)
15.6 dB (at 300 MHz)
15.6 dB (at 400 MHz)
15.6 dB (at 500 MHz)
Signal runtime5.13 ns/m
Shield attenuation≥ 80 dB (at 30 ... 100 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined foil
Overall twist4 pairs for core
ShieldingTinned copper braided shield
Optical shield covering70 %
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialBare Cu litz wires
Cable weight42 kg/km
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with DIN EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1424135 Connectors (EC003570)
Feature Name Feature Value
Cable length (EF000536) 0.5 mm
Type of plug-in contact, outer side (EF005528) None
Mounting method (EF000003) Back wall mounting
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated voltage (EF000228) 50 V
With shield connection (EF002535) Yes
Screw-in thread (EF012303) M12
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
