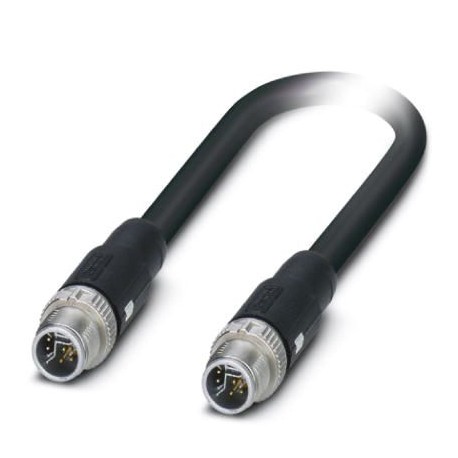

SAC-MS/50,0-94H/MS HYB SCO 1405673 PHOENIX CONTACT Hybrid cable
SAC-MS/50,0-94H/MS HYB SCO
1405673
PHOENIX CONTACT
1 Pcs.
Hybrid cable
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1405673 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356752978 |
| Weight per Piece (excluding packing) | 4,431.300 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated current at 40°C | 6 A (Power) |
|---|---|
| 0.5 A (Data) | |
| Rated voltage | 30 V AC (Power and data) |
| 30 V DC | |
| Number of positions | 8 |
| Coding | Y - hybrid |
| Signal type/category | Ethernet CAT5 (IEC 11801:2002) |
| Status display | No |
| Degree of pollution | 2 |
Cable
| Cable type | Ethernet hybrid |
|---|---|
| Cable type (abbreviation) | 94H |
| UL AWM style | 20963 (80°C/30 V) |
| Cable structure | 1x4xAWG26+1x4xAWG20 |
| Conductor cross section | 4x 0.15 mm² (Data) |
| 4x 0.6 mm² (Power) | |
| AWG signal line | 26 |
| AWG power supply | 20 |
| Conductor structure signal line | 19x 0.10 mm |
| Conductor structure, voltage supply | 19x 0.20 mm |
| Core diameter including insulation | 1.05 mm (Data) |
| 1.4 mm (Power) | |
| Wire colors | White/orange, orange, white/green, green, white, blue, brown, black |
| Overall twist | 1 star quad and 4 wires with 2 fillers |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 7.6 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Number of bending cycles | 2000000 |
| Minimum bending radius, drag chain applications | 10 x D |
| Traversing path | 4.5 m |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Cable weight | 87 kg/km |
| Tensile strength GRP | 70 N (in accordance with DIN EN 50565-1 for flexible installation) |
| 240 N (in accordance with DIN EN 50565-1 for fixed installation) | |
| Outer sheath, material | PUR |
| Material conductor insulation | PP (Data) |
| PP (Power) | |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 5 GΩ*km |
| Loop resistance | ≤ 280.00 Ω/km (Data) |
| ≤ 34.60 Ω/km (Power) | |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | nom. 50 nF (per kilometer) |
| Wave impedance | 100 Ω ±15 Ω (4 MHz ... 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 56.3 dB (at 4 МHz) |
| 50.3 dB (at 10 MHz) | |
| 47.2 dB (at 16 MHz) | |
| 45.8 dB (at 20 МHz) | |
| 42.9 dB (at 31.25 МHz) | |
| 38.4 dB (at 62.5 МHz) | |
| 35.3 dB (at 100 MHz) | |
| Attenuation | 6 dB (at 4 МHz) |
| 9.5 dB (at 10 MHz) | |
| 12.1 dB (at 16 MHz) | |
| 13.5 dB (at 20 МHz) | |
| 17.1 dB (at 31.25 МHz) | |
| 24.8 dB (at 62.5 МHz) | |
| 32 dB (at 100 MHz) | |
| Shield attenuation | ≥ 80 dB (30 MHz ... 125 MHz) |
| Differential impedance | 100 Ω ±5 % (at 100 MHz) |
| Nominal voltage, cable | ≤ 50 V (Peak value, not for high-power applications) |
| Test voltage Core/Core | 1500 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 1500 V (50 Hz, 1 min.) |
| Special properties | Free of substances which would hinder coating with paint or varnish |
| Silicone-free | |
| Flame resistance | in acc. with UL 1581, section 1061 |
| Halogen-free | according to IEC 60754 |
| in accordance with DIN VDE 0472 part 815 | |
| Resistance to oil | according to IEC 60811-2-1 |
| according to VDE 0282 Part 10 | |
| Other resistance | Low adhesion |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -30 °C ... 70 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
