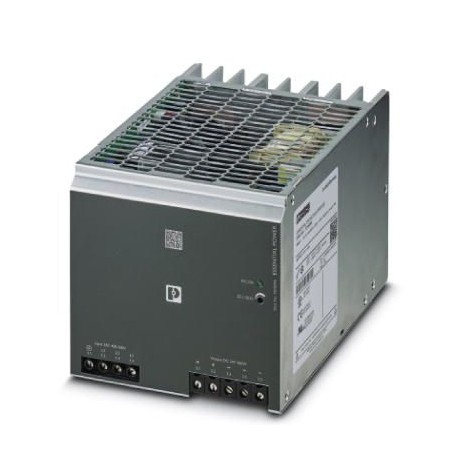

PHOENIX CONTACT ESSENTIAL-PS/3AC/24DC/960W/EE ESSENTIAL-PS/3AC/24DC/960W/EE 1018294 PHOENIX CONTACT Power supply unit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ESSENTIAL-PS/3AC/24DC/960W/EE 1018294 PHOENIX CONTACT Power supply unit

ESSENTIAL-PS/3AC/24DC/960W/EE

1018294

PHOENIX CONTACT

1 Pcs.

Power supply unit ESSENTIAL edition primary switching power supply for rail mounting, input: three-phase, output: 24 V DC/960 W

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1018294
Packing unit1 pc
GTIN4055626501796
Weight per Piece (excluding packing)3,450.000 g
Custom tariff number85044030
Country of originCN (China)

Dimensions

Width139 mm
Height130 mm
Depth190 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 55 °C Derating: 2.5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range3x 400 V AC ... 500 V AC
Input voltage range3x 320 V AC ... 575 V AC
AC frequency range45 Hz ... 65 Hz
Discharge current to PE< 3.5 mA
Current consumption3x 2 A (400 V AC)
3x 1.6 A (480 V AC)
Inrush surge current< 20 A
Mains buffering> 16 ms (3x 400 V AC)
Choice of suitable circuit breakers10 A ... 16 A (UL: 20 A)
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)22.5 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)40 A (UOUT= 24 V DC)
Derating55 °C ... 70 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Feedback resistance35 V DC
Protection against surge voltage on the output< 35 V DC
Active current limitationapprox. 42 A
Residual ripple< 20 mVPP
Output power960 W
Typical response time< 1 s
Peak switching voltages nominal load< 40 mVPP
Maximum power dissipation in no-load condition11 W
Power loss nominal load max.87 W

General

Net weight3.2 kg
Operating voltage displayGreen LED
Efficiency91.5 % (at 400 V AC and nominal values)
Insulation voltage input/output3 kV AC (type test)
1.5 kV AC (routine test)
Insulation voltage output / PE500 V DC
Protection classI (with PE connection)
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 700000 h

Connection data, input

Connection methodScrew connection

Connection data, output

Connection methodScrew connection

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyEN 60950-1
Standard – Safety extra-low voltageEN 60950-1 (SELV)
UL approvalsUL/C-UL listed UL 508
Shock15g
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Approval - requirement of the semiconductor industry with regard to mains voltage dipsSEMI F47 - 0706 (200 V AC)

Classifications


ETIM for 1018294 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) AC
1st secondary output voltage (EF006792) 22.5 V
Max. output current 1 (EF008284) 40 A
Secondary voltage adjustable (EF007002) Yes
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output current 1 (EF009396) 40 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage AC 50 Hz (EF007076) 320 V
Rated supply voltage AC 60 Hz (EF007077) 400 V
Output voltage stabilized (EF003092) Yes
Power consumption (EF000346) 1149.27 VA
Power output (EF003034) 960 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in height (EF000332) 130 mm
Direct mounting possible (EF005689) No
Width (EF000008) 139 mm
Height (EF000040) 130 mm
Depth (EF000049) 190 mm
Suitable for safety functions (EF001597) Yes
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other
