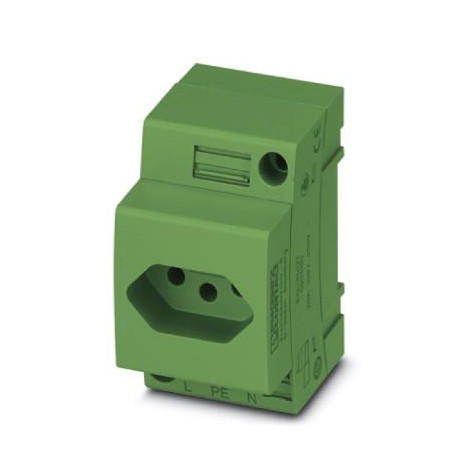

EO-N/UT/GN 0804140 PHOENIX CONTACT Socket
EO-N/UT/GN
0804140
PHOENIX CONTACT
5 Pcs.
Socket
Power socket, N-type plug-in face, Screw connection, for Brazil/South Africa and other countries, green, for rail mounting at the service interface or direct mounting, 250 VAC, 20 A, -20 °C, 60 °C
Automation > Socket outlet for distribution board
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0804140 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 610 (C-3-2017) |
| GTIN | 4055626226712 |
| Weight per Piece (excluding packing) | 73.300 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Nominal voltage UN | 250 V AC (50 Hz ... 60 Hz) |
|---|---|
| Nominal current IN | 20 A |
| Status display | No |
| Contact material | CuZn37 |
| Color | green |
| 6021 | |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | NBR 14136 |
| Country ID | Brazil |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Screw connection |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
