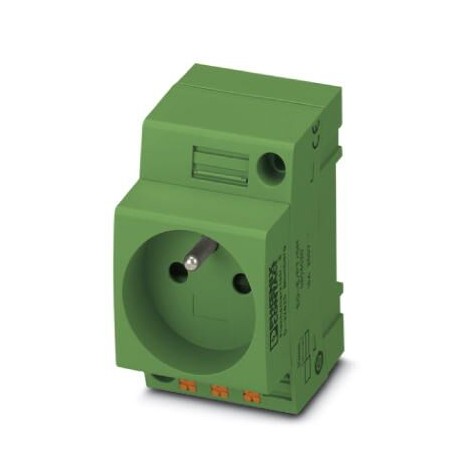

PHOENIX CONTACT EO-E/PT/SH/GN EO-E/PT/SH/GN 0804021 PHOENIX CONTACT Socket, Pin connector pattern type E, Push-in spring connection, for F.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EO-E/PT/SH/GN 0804021 PHOENIX CONTACT Socket, Pin connector pattern type E, Push-in spring connection, for F..

EO-E/PT/SH/GN

0804021

PHOENIX CONTACT

5 Pcs.

Socket, Pin connector pattern type E, Push-in spring connection, for France and other countries, with extended touch proofness/shutter, green, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, NF C61-314 Power socket, Type E plug-in face, Push-in spring connection, for France and other countries, with extended accidental contact protection/safety device, green, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, NFC61-314

Automation > Socket outlet for distribution board
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0804021
Packing unit1
Catalog pagePage 565 (C-3-2019)
GTIN4055626225630
Custom tariff number85366990

Drawings

Circuit diagram

Circuit diagram

Back to top

Dimensions

Width45 mm
Height75 mm
Depth57.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Back to top

General

Nominal voltage UN250 V AC (50 Hz)
Nominal current IN16 A
Status displayNo
Contact materialCuZn37
Colorgreen
6021
Insulating materialPA
Flammability rating according to UL 94V0
Standards/regulationsNF C61-314
Country IDFrance
Back to top

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Connection methodPush-in spring connection
Back to top

Standards and Regulations

Standards/regulationsNF C61-314
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027142300
eCl@ss 4.127142300
eCl@ss 5.027142300
eCl@ss 5.127142300
eCl@ss 6.027142300
eCl@ss 7.027142305
eCl@ss 8.027142305
eCl@ss 9.027142305
Back to top

ETIM

ETIM 5.0EC001663
ETIM 6.0EC001663
ETIM 7.0EC001663
Back to top
