View larger
Images are for illustrative purposes only. Please refer to data sheet for details

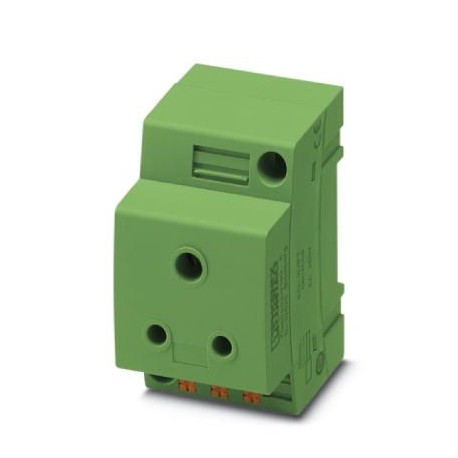

EO-D/PT/GN 0804010 PHOENIX CONTACT Socket
EO-D/PT/GN
0804010
PHOENIX CONTACT
5 Pcs.
Socket
Power socket, Reference: D, Push-in spring connection, for India/Africa and other countries, NOT suitable for South Africa (ZA), green, for rail mounting on the service interface or direct mounting, 250 VAC, 6 A, -20 °C, 60 °C, IS1293
Automation > Socket outlet for distribution board
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0804010 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 607 (C-3-2017) |
| GTIN | 4055626225531 |
| Weight per Piece (excluding packing) | 70.090 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Nominal voltage UN | 250 V AC (50 Hz) |
|---|---|
| Nominal current IN | 6 A |
| Status display | No |
| Contact material | CuZn37 |
| Color | green |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | IS 1293 |
| Country ID | India / Africa |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Push-in spring connection |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
