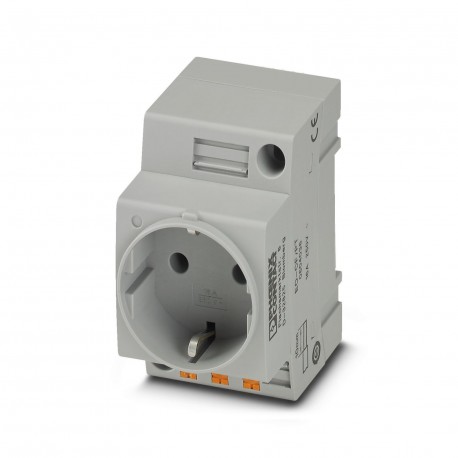

EO-CF/PT 0804038 PHOENIX CONTACT Socket

EO-CF/PT

0804038

PHOENIX CONTACT

5 Pcs.

Socket Power socket, Plug-in face type CF, Push-in spring connection, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, VDE0620-1 Socket, Pin connector pattern type CF, gray, for mounting on a DIN rail in the service interface or direct mounting, f1 = 5 Hz to f2 = 250 Hz, -5 °C, 40 °C, VDE 0620-1

Automation > Socket outlet for distribution board
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSocket
Country IDGermany
Data management status
Article revision04
Connection data
Stripping length10 mm
Internal cylindrical gageA3
B3
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.25 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)0.25 mm² ... 2.5 mm²
Nominal current16 A
Nominal voltage250 V AC (50 Hz)
Connection cross sections directly pluggable
Conductor cross section rigid0.5 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)1 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)1 mm² ... 2.5 mm²
Signaling
Status displayno
Dimensions
Dimensional drawingervtydzkqo.jpg
Width45 mm
Height75 mm
Depth61.7 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating materialPA
Contact materialCuZn37
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Connector
Type of plugPin connector pattern type CF
Environmental and real-life conditions
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpectrumService life test category 2, bogie-mounted
Frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-5 °C ... 40 °C (Average value over a period of 24 hours not above +35°C)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Standards
Standards/regulationsVDE 0620-1
Mounting
Mounting typefor mounting on a DIN rail in the service interface or direct mounting

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
