PHOENIX CONTACT EO-AB/PT/S/15 EO-AB/PT/S/15 0804173 PHOENIX CONTACT Socket, Pin connector pattern type AB 15A, Push-in spring connection, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EO-AB/PT/S/15 0804173 PHOENIX CONTACT Socket, Pin connector pattern type AB 15A, Push-in spring connection, ..

EO-AB/PT/S/15

0804173

PHOENIX CONTACT

5 Pcs.

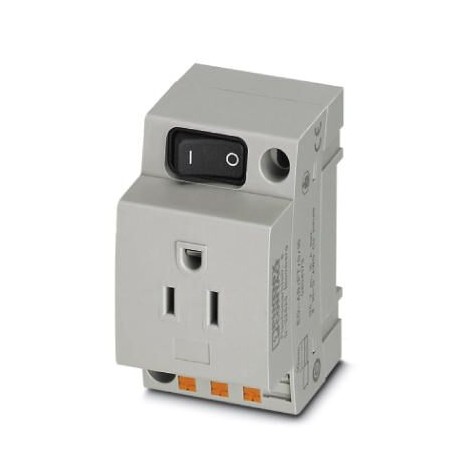

Socket, Pin connector pattern type AB 15A, Push-in spring connection, for USA and other countries, switch, gray, for mounting on a DIN rail in the service interface or direct mounting, 125 V AC, 15 A, -20 °C, 60 °C, UL 508 Power Outlet, Plug-in Face Type AB 15A, Push-In Spring Connection, for USA and Other Countries, Switch, Grey, For Rail Mounting at Service Interface or Direct Mounting, 125 VAC, 15 A, -20 °C, 60 °C, UL 508

Automation > Socket outlet for distribution board
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0804173
Packing unit1 pc
Minimum order quantity5 pc
Catalog pagePage 563 (C-3-2019)
GTIN4055626226941
Weight per Piece (excluding packing)92.000 g
Custom tariff number85366990
Country of originPL (Poland)

Drawings

Circuit diagram

Circuit diagram

Back to top

Dimensions

Width45 mm
Height75 mm
Depth57.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Back to top

General

Nominal voltage UN125 V AC (60 Hz)
Nominal current IN15 A
Status displayNo
Contact materialCuZn37
Colorgray
7042
Insulating materialPA
Flammability rating according to UL 94V0
Standards/regulationsUL 508
Country IDUSA
Back to top

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Connection methodPush-in spring connection
Back to top

Standards and Regulations

Standards/regulationsUL 508
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027142300
eCl@ss 4.127142300
eCl@ss 5.027142300
eCl@ss 5.127142300
eCl@ss 6.027142300
eCl@ss 7.027142305
eCl@ss 8.027142305
eCl@ss 9.027142305
Back to top

ETIM

ETIM 5.0EC001663
ETIM 6.0EC001663
ETIM 7.0EC001663
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
