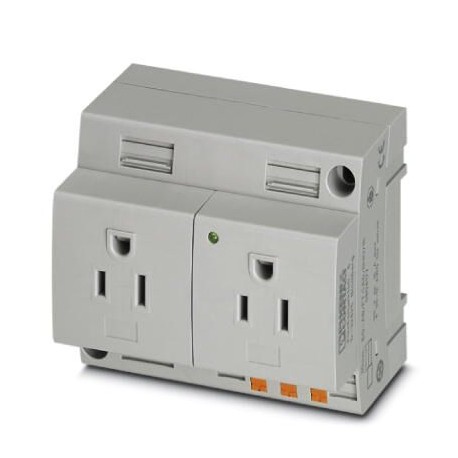

PHOENIX CONTACT EO-AB/PT/LED/DUO/15 EO-AB/PT/LED/DUO/15 0804177 PHOENIX CONTACT Double socket, Pin connector pattern type AB 15A, Push-in spring.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EO-AB/PT/LED/DUO/15 0804177 PHOENIX CONTACT Double socket, Pin connector pattern type AB 15A, Push-in spring..

EO-AB/PT/LED/DUO/15

0804177

PHOENIX CONTACT

2 Pcs.

Double socket, Pin connector pattern type AB 15A, Push-in spring connection, for USA and other countries, with LED display, gray, for mounting on a DIN rail in the service interface or direct mounting, 125 V AC, 15 A, -20 °C, 60 °C, UL 508 Dual Power Outlet, Type AB 15A Plug-in Side, Push-In Spring Connection, for USA and Other Countries, with Indicator Light, Grey, for Rail Mounting at Service Interface or Direct Mounting, 125 VAC, 15 A, -20°C, 60°C, UL 508

Automation > Socket outlet for distribution board
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0804177
Packing unit1 pc
Minimum order quantity2 pc
Catalog pagePage 563 (C-3-2019)
GTIN4055626226989
Weight per Piece (excluding packing)150.000 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Width90 mm
Height75 mm
Depth57.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Back to top

General

Nominal voltage UN125 V AC (60 Hz)
Nominal current IN15 A
Status displayYes
Contact materialCuZn37
Colorgray
7042
Insulating materialPA
Flammability rating according to UL 94V0
Standards/regulationsUL 508
Country IDUSA
Back to top

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Connection methodPush-in spring connection
Back to top

Standards and Regulations

Standards/regulationsUL 508
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027142300
eCl@ss 4.127142300
eCl@ss 5.027142300
eCl@ss 5.127142300
eCl@ss 6.027142300
eCl@ss 7.027142305
eCl@ss 8.027142305
eCl@ss 9.027142305
Back to top

ETIM

ETIM 5.0EC001663
ETIM 6.0EC001663
ETIM 7.0EC001663
Back to top
