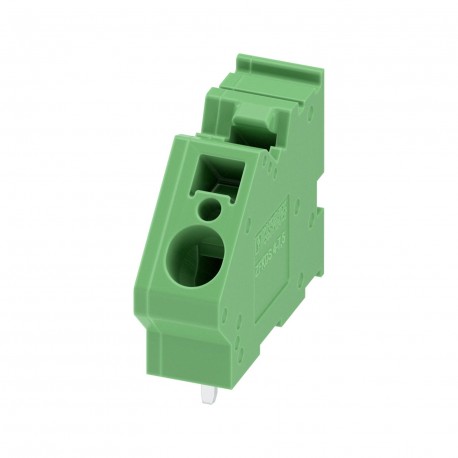

ZFKDSA 4- 9 1907542 PHOENIX CONTACT PCB terminal block

ZFKDSA 4-9

1907542

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal lug, 9 mm thick, required at the end of a row of terminal blocks

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1907542
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 477 (C-1-2013)
GTIN4017918193911
Weight per Piece (excluding packing)4.940 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]29 mm
Pitch7.5 mm
Height23 mm
Solder pin [P]4.6 mm
Hole diameter1.8 mm

General

Range of articlesZFKDS(A) 4
Insulating material groupI
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)500 V
Rated voltage (III/2)630 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN32 A
Nominal cross section4 mm²
Maximum load current32 A (with 4 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA4
Stripping length10 mm
Number of positions1

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1907542 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 27.6 mm
Number of electrical connections (EF008252) 1
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 7.5 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 6 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.8 mm
Length pin (EF006825) 4.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
