D-UT 6-T-HV 3070147 PHOENIX CONTACT End cover

D-UT 6-T-HV

3070147

PHOENIX CONTACT

50 Pcs.

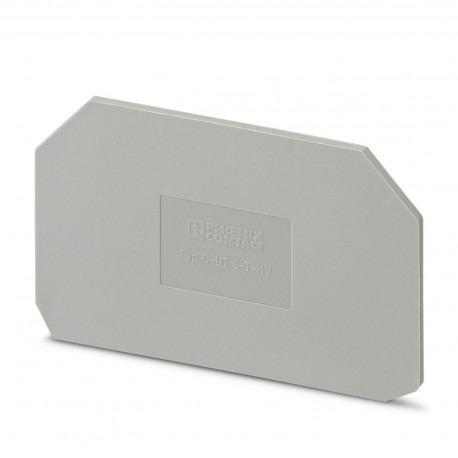

End cover End cap, length: 72.6 mm, width: 2.2 mm, height: 43.6 mm, colour: grey End cover, depth: 43.6 mm, width: 2.2 mm, height: 72.6 mm, color: gray

Automation > Endplate and partition plate for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeEnd cover
Data management status
Article revision01
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Material specifications
Colorgray (RAL 7042)
MaterialPA
Flammability rating according to UL 94V0
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Dimensions
Width2.2 mm
End cover width2.2 mm
Height72.6 mm
Depth43.6 mm
Depth on NS 35/7,554.3 mm

ETIM for 3070147 Terminal blocks (EC000886)
Feature Name Feature Value
Colour (EF000007) Grey
Thickness (EF000125) 2.2 mm
Inflammability class of insulation material according to UL94 (EF002521) V0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
