View larger
Images are for illustrative purposes only. Please refer to data sheet for details

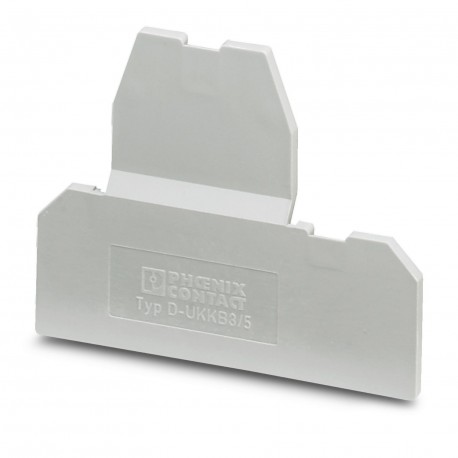

D-UKKB 3/5 2771023 PHOENIX CONTACT End cover
D-UKKB 3/5
2771023
PHOENIX CONTACT
50 Pcs.
End cover
End cap, length: 67.2 mm, width: 2.5 mm, height: 52 mm, colour: grey
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2771023 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 434 (C-1-2017) |
| GTIN | 4017918068172 |
| Weight per Piece (excluding packing) | 3.490 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141145eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141133eCl@ss 8.027141133eCl@ss 9.027141133
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | Yes |
| Partition model (EF006587) | No |
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 2.5 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
