View larger
Images are for illustrative purposes only. Please refer to data sheet for details

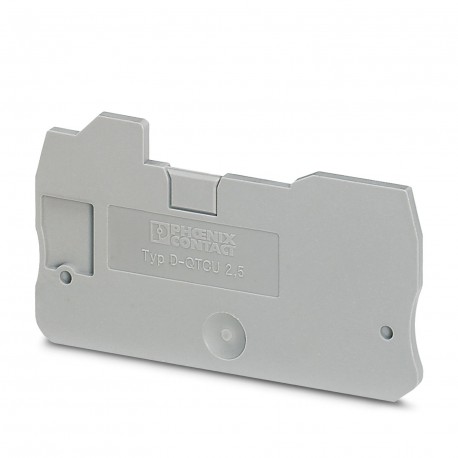

D-QTCU 2,5 3206597 PHOENIX CONTACT End cover
D-QTCU 2,5
3206597
PHOENIX CONTACT
50 Pcs.
End cover
End cap, length: 62.6 mm, width: 2.2 mm, height: 35.1 mm, colour: grey
End cover, depth: 35.1 mm, width: 2.2 mm, height: 62.6 mm, color: gray
Automation > Endplate and partition plate for terminal block
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | End cover |
| Data management status | |
| Article revision | 01 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C () |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 2.2 mm |
| Height | 62.6 mm |
| Depth | 35.1 mm |
| Depth on NS 35/7,5 | 42.8 mm |
