View larger
Images are for illustrative purposes only. Please refer to data sheet for details

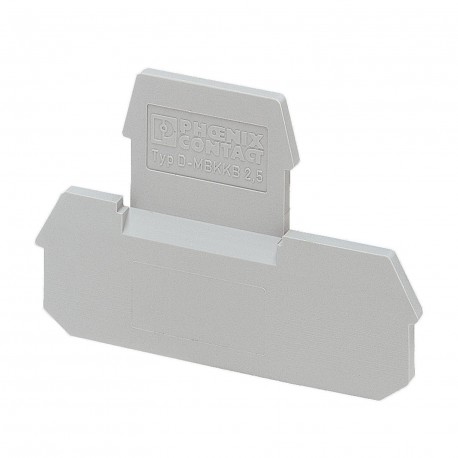

D-MBKKB 2,5 1413052 PHOENIX CONTACT End cover
D-MBKKB 2,5
1413052
PHOENIX CONTACT
50 Pcs.
End cover
End cap, length: 62 mm, width: 5 mm, height: 40 mm, colour: grey
End cover, depth: 40 mm, width: 5 mm, height: 62 mm, color: gray
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | End cover |
| Data management status | |
| Article revision | 01 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Static insulating material application in cold | -40 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Dimensions
| Width | 5 mm |
| Height | 62 mm |
| Depth | 40 mm |
| Depth on NS 35/7,5 | 47.5 mm |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | Yes |
| Partition model (EF006587) | No |
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 2.5 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
