View larger
Images are for illustrative purposes only. Please refer to data sheet for details

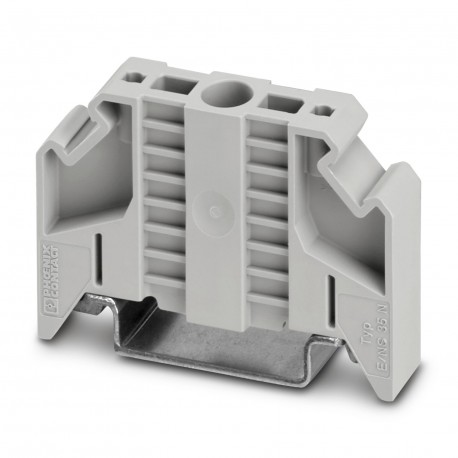

E/NS 35 N 0800886 PHOENIX CONTACT End clamp
E/NS 35 N
0800886
PHOENIX CONTACT
50 Pcs.
End clamp
Final bracket, width: 9.5 mm, color: Grey
End clamp, width: 9.5 mm, color: gray
Automation > End bracket for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | End bracket |
| Data management status | |
| Article revision | 09 |
Connection data
| Screw thread | M3 |
| Tightening torque | 0.5 ... 0.8 Nm |
Dimensions
| Dimensional drawing |  |
| Width | 9.5 mm |
| Height | 48.6 mm |
| Depth | 32.8 mm |
| Depth on NS 35/7,5 | 34.3 mm |
| Length | 48.6 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | NS 35/7,5 |
| NS 35/15 |
