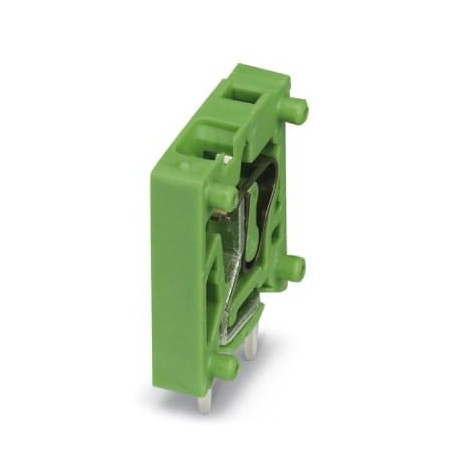

PHOENIX CONTACT ZFKDS 12-V-3,81 ZFKDS 12-V-3,81 5603057 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKDS 12-V-3,81 5603057 PHOENIX CONTACT PCB terminal block

ZFKDS 12-V-3,81

5603057

PHOENIX CONTACT

50 Pcs.

PCB terminal block Printed circuit board terminal, rated current: 12 A, dimensioning voltage (III/2): 200 V, nominal section: 1 mm², Number of potentials: 12, Number of rows: 1, Number of poles per row: 12, item family: ZFKDS(A) 1-V, pitch:3.81 mm, connection type: Spring connection, mounting: Wave welding, connection direction conductor/printed circuit board: 90°, Color: Green, Pin Layout: Double Linear Pin Arrangement, Pin Length [P]: 3.5mm

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5603057
Packing unit1
GTIN4046356751667
Custom tariff number85369010

Dimensions

Length [ l ]15.9 mm
Pitch3.81 mm
Dimension a41.91 mm
Height16 mm
Solder pin [P]3.5 mm
Hole diameter1.2 mm

General

Range of articlesZFKDS(A) 1-V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)200 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Stripping length7.5 mm
Number of positions12

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.16
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.2 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Classifications


ETIM for 5603057 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 18.75 mm
Number of electrical connections (EF008252) 12
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 200 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
