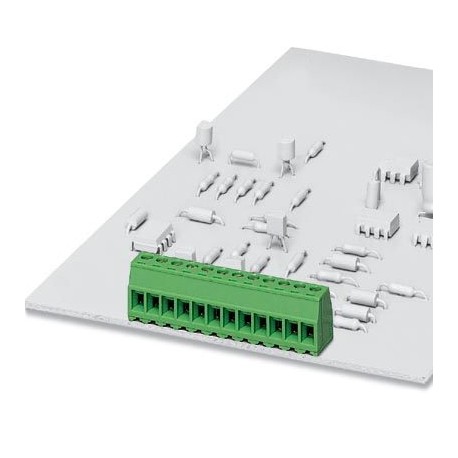

PHOENIX CONTACT EMKDS 1,5/ 3-3,81 EMKDS 1,5/ 3-3,81 1705663 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMKDS 1,5/ 3-3,81 1705663 PHOENIX CONTACT PCB terminal block

EMKDS 1,5/ 3-3,81

1705663

PHOENIX CONTACT

50 Pcs.

PCB terminal block

Connectors > Printed circuit board terminal
PCB Connectors (PCC)
