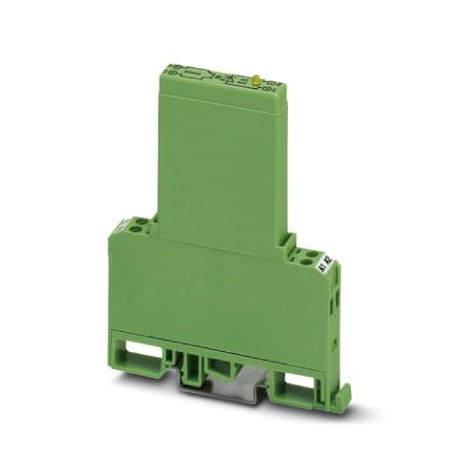

EMG 10-OE-230AC/48DC/100/SO218 2311700 PHOENIX CONTACT Solid-state relay module

EMG 10-OE-230AC/48DC/100/SO218

2311700

PHOENIX CONTACT

50 Pcs.

Solid-state relay module Input solid-state relay, with indicator light and protection circuit in the output and input circuit, input: 230 V AC, output: 4 V DC - 48 V DC/max. 35 mA, customer-specific variant for 50 Hz triggering

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2311700
Packing unit10 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356287326
Weight per Piece (excluding packing)40.400 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width10 mm
Height75 mm
Depth102 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C

Input data

Nominal input voltage UN230 V AC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range207 V AC ... 253 V AC
Typical input current at UN3 mA
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Transmission frequency50 Hz

Output data

Output nominal voltage48 V DC
Output voltage range4 V DC ... 48 V DC
Limiting continuous current35 mA
Voltage drop at max. limiting continuous current0.9 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

General

Test voltage input/output3.5 kV AC
Mounting positionany
Standards/regulationsDIN VDE 0110
DIN VDE 0106-101
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Standards/regulationsDIN VDE 0110
DIN VDE 0106-101
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2311700 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 207 V
Output voltage (EF003933) 4 V
Rated operation current Ie (EF001443) 0.035 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
