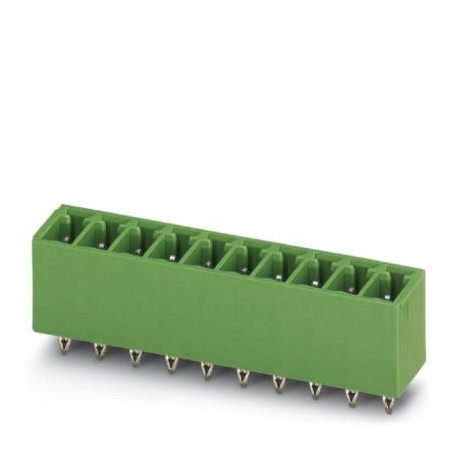

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
EMCV 1,5/ 8-G-3,81 BK 1724530 PHOENIX CONTACT Feed-through header
EMCV 1,5/ 8-G-3,81 BK
1724530
PHOENIX CONTACT
50 Pcs.
Feed-through header
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1724530 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356126694 |
| Weight per Piece (excluding packing) | 2.010 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 7.25 mm |
|---|---|
| Width | 31.87 mm |
| Pitch | 3.81 mm |
| Dimension a | 26.67 mm |
| Width [ w ] | 31.87 mm |
| Height [ h ] | 13.8 mm |
| Height | 10 mm |
| Length of the solder pin | 3.8 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Length | 7.25 mm |
General
| Range of articles | EMCV 1,5/..-G |
|---|---|
| Rated voltage (III/3) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Color | black |
| Number of positions | 8 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
