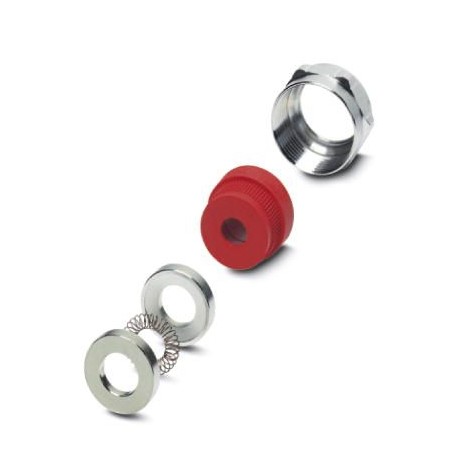

VC-EMV-KV-PG21( 9-13/ 9,5) 1854200 PHOENIX CONTACT Cable gland
VC-EMV-KV-PG21( 9-13/ 9,5)
1854200
PHOENIX CONTACT
1 Pcs.
Cable gland
Cable gland split CEM Pg21, for metal housings sizes 2-4, consisting of sealing rubber, iris spring, conical washers and clamping screw, for size 1 housings, cable screen tensioning margin [mm] 5.5-9.5, cable [mm] 9-13
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1854200 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 45 (C-2-2013) |
| GTIN | 4017918145866 |
| Weight per Piece (excluding packing) | 51.800 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Dimensions
| Length | 31 mm |
|---|---|
| Wrench size, union nut | 30 mm |
| External cable diameter | 9 mm ... 13 mm |
| Shield diameter | 9.5 mm |
General
| Note | Adapter screw connections are available on request for large cable dimensions, from Pg16 to Pg21 and from Pg21 to Pg29 |
|---|---|
| No. of conductors | 1 |
| Material, pressure screw | Nickel-plated brass |
| Seal material | TPE |
| Sealing material | TPE |
| Shielded | yes |
| Thread type on seal side | Pg21 |
| Tightening torque, union nut | 10.00 Nm |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Wrench width (EF000177) | 30 mm |
| Suitable for cable diameter (EF005466) | 9 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Thermoplastic Elastomer (TPE) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | Other |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
