View larger
Images are for illustrative purposes only. Please refer to data sheet for details

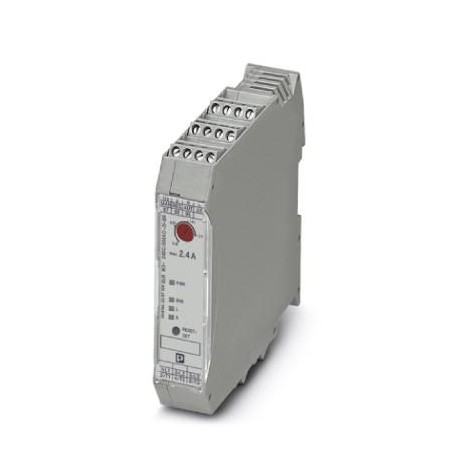

ELR W3- 24DC/500AC- 2I-BR 2297109 PHOENIX CONTACT Hybrid motor starter
ELR W3-24DC/500AC-2I-BR
2297109
PHOENIX CONTACT
1 Pcs.
Hybrid motor starter
Hybrid motor starter for reversing 3~AC motors up to 550V AC, with 24V DC input, 2.4A output current, adjustable overload disconnect, and limited phase fault detection
Automation > Motor starter/Motor starter combination
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2297109 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356428347 |
| Weight per Piece (excluding packing) | 217.000 g |
| Custom tariff number | 85371099 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027024002eCl@ss 5.127024000eCl@ss 6.027024000eCl@ss 7.027024002eCl@ss 8.027024002eCl@ss 9.027370905
| Feature Name | Feature Value |
|---|---|
| Type of motor starter (EF009598) | Reversing starter |
| With short-circuit release (EF006691) | No |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation current Ie (EF001443) | 2.4 A |
| Rated operation current at AC-3, 400 V (EF009602) | 2.4 A |
| Overload release current setting (EF002336) | 0.18 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Temperature compensated overload protection (EF009604) | No |
| Release class (EF006668) | CLASS 10 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Number of command positions (EF001372) | 1 |
| External reset possible (EF003426) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 107 mm |
| Depth (EF000049) | 114 mm |
