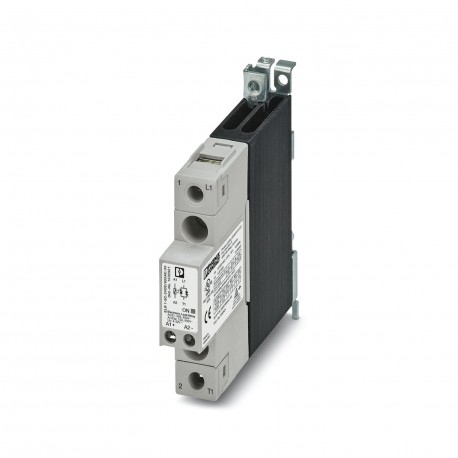

PHOENIX CONTACT ELR 1-SC-24DC/600AC-30 ELR 1-SC-24DC/600AC-30 1032921 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 24 V DC, o.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ELR 1-SC-24DC/600AC-30 1032921 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 24 V DC, o..

ELR 1-SC-24DC/600AC-30

1032921

PHOENIX CONTACT

1 Pcs.

Single-phase solid-state contactor, input voltage: 24 V DC, output current: 30 A, zero voltage switch Single-phase semiconductor contactor, input voltage: 24 V DC, output current: 30 A, zero voltage switch

Automation > Power contactor, AC switching
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1032921
Packing unit1 pc
Catalog pagePage 49 (C-5-2019)
GTIN4055626537924
Weight per Piece (excluding packing)260.000 g
Custom tariff number85362010
Country of originMT (Malta)

Drawings

Block diagram

Block diagram

Back to top

Dimensions

Width18 mm
Height110 mm
Depth103 mm
Back to top

Ambient conditions

Ambient temperature (operation)-30 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Back to top

Input data

Input nameControl input
Rated actuating voltage UC24 V DC
Triggering voltage range4 V DC ... 32 V DC
Rated actuating current ICapprox. 12 mA
Switching threshold≤ 1 V DC (“0” signal)
≥ 4 V DC (“1” signal)
Transmission frequency25 Hz
Operating voltage displayGreen LED
Back to top

Output data load output

Output nameLoad output
Operating voltage range42 V AC ... 660 V AC
Load current range250 mA ... 30 A (see to derating)
Rated operating current at AC-5130 A
Rated operating current at AC-53a15 A (TA= 25 °C)
5 A (TA= 40 °C)
Leakage current< 3 mA (In off state)
Residual voltage< 1 V
Surge current600 A (t = 10 ms)
Type of protectionVaristor
Back to top

General

Mounting positionVertical (horizontal DIN rail)
Assembly instructionsCan be aligned with ≥ 22.5 mm spacing
Back to top

Connection data

Connection nameControl circuits
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.5 mm² ... 2.5 mm²
Conductor cross section flexible0.5 mm² ... 2.5 mm²
Conductor cross section AWG18 ... 12
Back to top

Connection data 2

Connection nameLoad circuit
Connection methodScrew connection
Stripping length12 mm
Screw threadM4
Conductor cross section solid2.5 mm² ... 6 mm²
Conductor cross section flexible1 mm² ... 4 mm²
Conductor cross section AWG14 ... 10
Back to top

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsEN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 55011
Back to top

Classifications

eCl@ss

eCl@ss 6.027371000
eCl@ss 7.027371014
eCl@ss 8.027371014
eCl@ss 9.027371014
Back to top

ETIM

ETIM 5.0EC002055
ETIM 6.0EC002055
ETIM 7.0EC002055
Back to top

ETIM for 1032921 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Voltage type for actuating (EF008242) DC
Number of normally closed contacts as main contact (EF001375) 0
Number of normally open contacts as main contact (EF001374) 0
Type of electrical connection of main circuit (EF006819) Screw connection
Rated operation current Ie at AC-1, 400 V (EF001393) 30 A
Rated operation current Ie at AC-3, 400 V (EF001392) 15 A
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Modular version (EF001126) Yes
