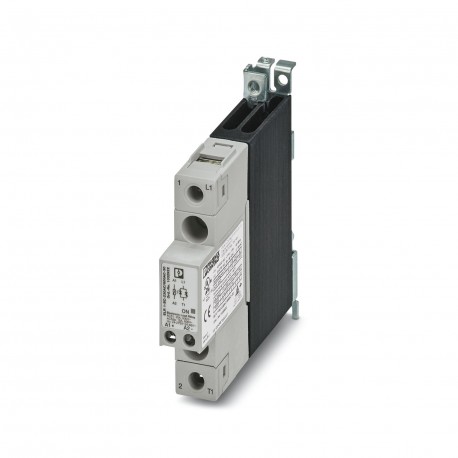

ELR 1-SC-230AC/600AC-30 1032922 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 230 V AC,..
ELR 1-SC-230AC/600AC-30
1032922
PHOENIX CONTACT
1 Pcs.
Single-phase solid-state contactor, input voltage: 230 V AC, output current: 30 A, zero voltage switch
Automation > Power contactor, AC switching
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Solid-state contactor |
| Data management status | |
| Article revision | 01 |
Electrical properties
| Number of phases | 1 |
| Maximum power dissipation for nominal condition | 28 W |
| Mains type | 1-phase |
Input data
| Control | |
| Input name | Control input |
| Rated actuating voltage UC | 230 V AC |
| Triggering voltage range | 24 V AC ... 275 V AC |
| 24 V DC ... 190 V DC | |
| Rated actuating current IC | approx. 17 mA |
| Switching threshold | ≤ 5 V AC/DC (“0” signal) |
| ≥ 20 V AC/DC (“1” signal) | |
| Operating voltage display | Green LED |
| Transmission frequency | 6 Hz |
Output data
| Load output | |
| Operating voltage range | 42 V AC ... 660 V AC |
| Rated operating current at AC-51 | 30 A |
| Rated operating current at AC-53a | 15 A (TA= 25 °C) |
| 5 A (TA= 40 °C) | |
| Peak offstate voltage | 1200 V |
| Mains frequency | 45 Hz |
| 65 Hz | |
| Load current range | 250 mA ... 30 A (see to derating) |
| Leakage current | < 3 mA (In off state) |
| Residual voltage | < 1 V |
| Surge current | 600 A (t = 10 ms) |
| Max. load value | 1800 A2s |
| Protective circuit | Varistor |
| Phase angle cos phi min | 0.5 |
Connection data
| Control circuits | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 18 ... 12 |
| Load circuit | |
| Connection method | Screw connection |
| Stripping length | 12 mm |
| Screw thread | M4 |
| Conductor cross section rigid | 2.5 mm² ... 6 mm² |
| Conductor cross section flexible | 1 mm² ... 4 mm² |
| Conductor cross section AWG | 14 ... 10 |
| Protective conductor connection | |
| Connection method | Ring cable lug |
| Screw thread | M5 |
| Tightening torque | 1.5 Nm |
Signaling
| Operating voltage display | Green LED |
Dimensions
| Width | 18 mm |
| Height | 110 mm |
| Depth | 103 mm |
Material specifications
| Color | gray (RAL 7042) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards and regulations
| Standards/regulations | |
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 55011 | |
Mounting
| Mounting type | DIN rail mounting |
| Assembly note | Can be aligned with ≥ 22.5 mm spacing |
| Mounting position | Vertical (horizontal DIN rail) |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 30 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 15 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Modular version (EF001126) | Yes |
