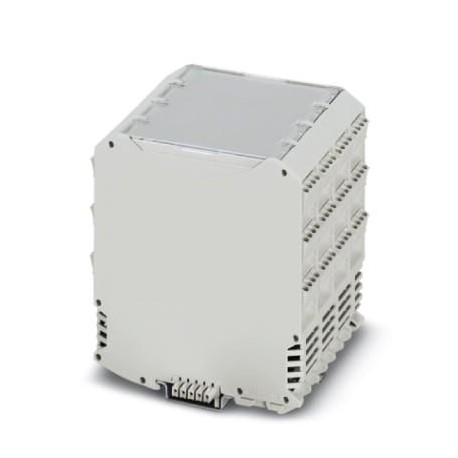

PHOENIX CONTACT ME MAX 90 3-3 KMGY ME MAX 90 3-3 KMGY 2200531 PHOENIX CONTACT Electronic housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME MAX 90 3-3 KMGY 2200531 PHOENIX CONTACT Electronic housing

ME MAX 90 3-3 KMGY

2200531

PHOENIX CONTACT

10 Pcs.

Electronic housing Rail housing, Full housing with metal pin, high design, with ventilation slits, width: 90.4 mm, height: 99 mm, depth: 113.65 mm, color: light gray (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 5

Automation > Electronic enclosure
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2200531
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 690 (C-1-2013)
GTIN4046356606004
Weight per Piece (excluding packing)108.330 g
Custom tariff number85389099
Country of originDE (Germany)

Item properties

Brief article descriptionElectronic housing
TypeME MAX 90 3-3 KMGY
Order No.2200531
Housing typeDIN rail housing
TypeTall design
Max. IP code to attainIP20
Mounting typeDIN rail mounting
Number of levels3
Ventilation openings presentyes
Max. number of positions120 (pitch: 3.5 mm)
96 (pitch: 5 mm)
72 (pitch: 7.25 mm/7.5 mm)

Dimensions

Dimensional drawing
Width [ w ]90 mm
Height [ h ]99 mm
Depth [ d ]114.5 mm
Depth from top edge of DIN rail [ d ]107 mm

Material data

Color (RAL)light gray (7035)
Flammability rating according to UL 94V0
Housing materialPolyamide

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)
Relative humidity (storage/transport)80 %

PCB data

Number of PCB holders4
PCB thickness1.4 mm ... 1.8 mm
Mounting positionVertical (horizontal DIN rail)
Type of PCB mountLatching

Power dissipation, single housing at 20 °C

Ambient temperature20 °C
Reduction factor1
Mounting positionvertical
Power dissipation10.4 W

Power dissipation, single housing at 30 °C

Ambient temperature30 °C
Reduction factor0.91
Mounting positionvertical
Power dissipation9.45 W

Power dissipation, single housing at 40 °C

Ambient temperature40 °C
Reduction factor0.81
Mounting positionvertical
Power dissipation8.4 W

Power dissipation, single housing at 50 °C

Ambient temperature50 °C
Reduction factor0.7
Mounting positionvertical
Power dissipation7.3 W

Power dissipation, single housing at 60 °C

Ambient temperature60 °C
Reduction factor0.57
Mounting positionvertical
Power dissipation5.9 W

Mechanical strength/tumbling barrel

SpecificationIEC 60998-1:2002-12
Height of fall50 cm
Number of drop cycles10

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 - 58.1 Hz)
Acceleration2g (58.1 - 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis

Shock

SpecificationIEC 60068-2-27:2008-02
Pulse shapeHalf-sine
Acceleration15g
Shock duration11 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)

Degrees of protection provided by housings (IP code)

SpecificationIEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Result, degree of protection, IP codeIP20

General information

Type of noteAssembly instruction:
NoteRefer to the data sheet for the range in the download area.

Packaging information

Type of packagingpacked in cardboard
Pieces per package10
Denomination packing unitsPcs.
Outer packaging typeCarton

Standards and regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2200531 Cabinets and enclosures (EC001031)
Feature Name Feature Value
Width (EF000008) 90.4 mm
Height (EF000040) 99 mm
Depth (EF000049) 113.65 mm
Material (EF002169) Other
Operating temperature (EF002393) -40 °C
With integrated PCB-mounting connection system (EF003087) No
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
With ventilation slots (EF007346) Yes
Degree of protection (IP) (EF005474) IP20
