View larger
Images are for illustrative purposes only. Please refer to data sheet for details

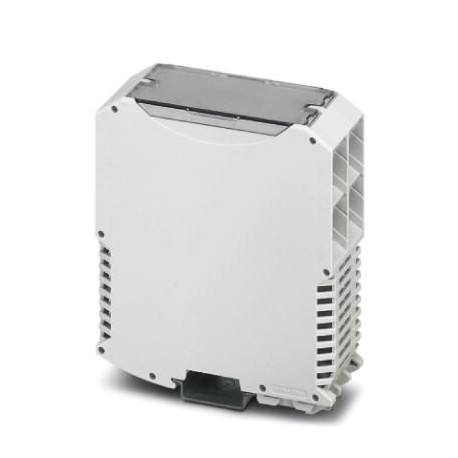

ME MAX 35 LC 2-2 KMGY 2200597 PHOENIX CONTACT Electronic housing
ME MAX 35 LC 2-2 KMGY
2200597
PHOENIX CONTACT
10 Pcs.
Electronic housing
Rail housing, Full housing with metal pin, tall design, with ventilation slits, width: 35.2 mm, height: 99 mm, depth: 113.65 mm, color: light gray (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 5
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2200597 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 687 (C-1-2013) |
| GTIN | 4046356630818 |
| Weight per Piece (excluding packing) | 68.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 35.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 113.65 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
