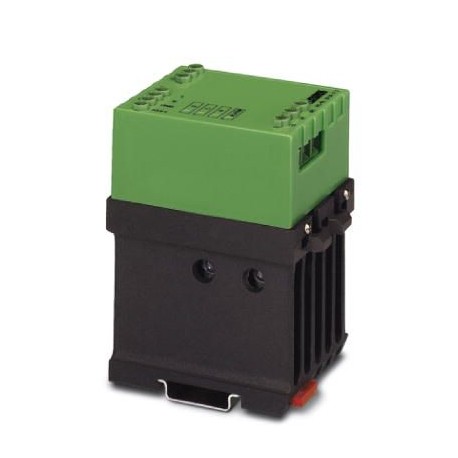

ELR W3/ 9-500 2964186 PHOENIX CONTACT Reversing load relay
ELR W3/ 9-500
2964186
PHOENIX CONTACT
1 Pcs.
Reversing load relay
Electronic inverter, for direct activation of consumers in the three-phase network, with light indication and protection circuit, output: 110-550 V AC/3 x 9 A
Automation > Power contactor, AC switching
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2964186 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 190 (IF-2011) |
| GTIN | 4017918099398 |
| Weight per Piece (excluding packing) | 662.220 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Degree of protection | IP20 |
Input data
| Input name | Control input right/left |
|---|---|
| Quiescent current | 40 mA |
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 19.2 V DC ... 30 V DC |
| Voltage range with reference to UC | 0.8 ... 1.25 |
| Rated actuating current IC | 7.5 mA |
| Reaction time in normal load operation | 50 ms |
| Switch-over frequency | < 10 Hz (At cos φ > 0.5) |
| Protective circuit | Reverse polarity protection Polarity protection diode |
| Surge protection | |
| Operating voltage display | Green LED |
| Status display | Yellow LED |
| Indication | Red LED |
| Maximum reversing frequency | 10 Hz |
| Switchover time RL/LL(turn-on time) | 20 ms |
Output data load output
| Output name | AC output |
|---|---|
| Rated operating voltage Ue | 500 V AC |
| Operating voltage range | 110 V AC ... 550 V AC |
| Load current range | 150 mA |
| Leakage current | typ. 7 mA |
| Residual voltage | typ. 1.5 V |
| Surge current | 230 A (tp = 10 ms, at 25 °C) |
| Type of protection | RC element |
| Protective circuit/component | RC element |
| Type of protection | Surge protection |
General
| Test voltage input/output | 2.5 kV |
|---|---|
| Mounting position | Vertical (horizontal DIN rail) |
| Assembly instructions | Can be aligned with > 20 mm spacing |
| Operating mode | 100% operating factor |
| Reversing frequency | ≤ 10 Hz (At cos φ = 0.5) |
Connection data 1
| Connection name | Control circuits |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
Connection data 2
| Connection name | Load circuit |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | EN 50178 |
| Designation | Power station requirements |
| EMC regulations | |
| Standards/regulations | EN 61000-6-2 |
| EN 61000-6-4 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | Yes |
