View larger
Images are for illustrative purposes only. Please refer to data sheet for details

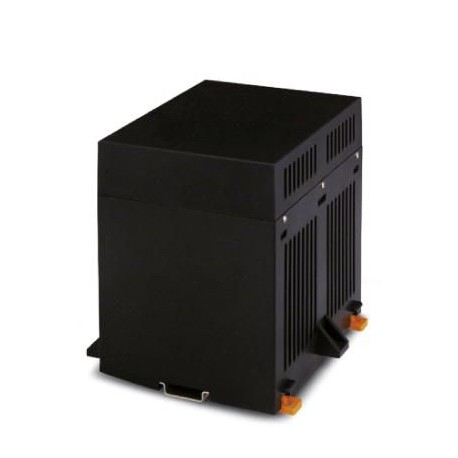

CM175-LG/H 35/BO/DB/GH BK 2941507 PHOENIX CONTACT Electronic housing
CM175-LG/H 35/BO/DB/GH BK
2941507
PHOENIX CONTACT
5 Pcs.
Electronic housing
Full housing, Full housing, with ventilation slits, width: 175 mm, depth: 125 mm, color: black (9005), cross bridge: without bus connector, number of poles cross connector: not relevant
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2941507 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 737 (C-1-2013) |
| GTIN | 4017918080471 |
| Weight per Piece (excluding packing) | 665.400 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Housing type | Complete housing |
|---|---|
| Housing material | Polycarbonate fiber reinforced |
| Color (RAL) | black (9005) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 175 mm |
| Depth (EF000049) | 125 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
