View larger
Images are for illustrative purposes only. Please refer to data sheet for details

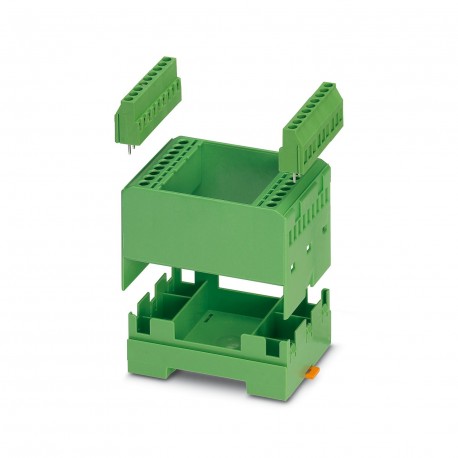

EMG 50-LG/SET 2940045 PHOENIX CONTACT Electronic housing
EMG 50-LG/SET
2940045
PHOENIX CONTACT
5 Pcs.
Electronic housing
Electronics housing set, consisting of electronics module and card terminal blocks, step 5
Electronic housing set, consisting of electronic module and printed circuit termination blocks, pitch 5
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Stackable housing set |
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG...-LG |
| Type | Lower housing part, removable cover as option, connection system integrated |
| Number of positions | 18 |
| Pitch | 5 mm |
| Type | Lower and upper part, with snap-on foot, including PCB terminal blocks |
Dimensions
| Dimensional drawing |  |
| Width | 50 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Green |
