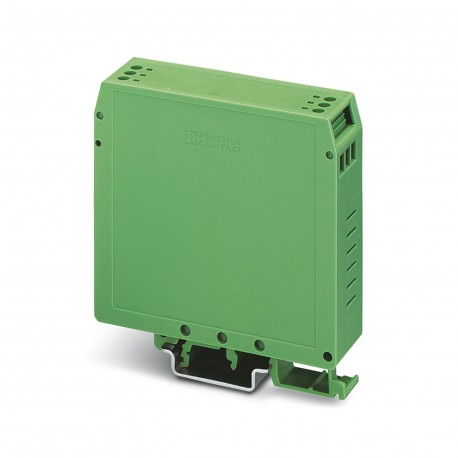

UEGM 27,5-SMD 2757063 PHOENIX CONTACT Electronic housing
UEGM 27,5-SMD
2757063
PHOENIX CONTACT
10 Pcs.
Electronic housing
Electronics housing, for inserting a printed circuit board, fully equipped with 3 screw connections on each side, for the assembly of SMD components
Electronic housing, for PCB insertion, fully equipped with 3 screw connections per side, for mounting of SMD components
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | UEGM |
| Product family | UEGM |
| Type | Connection system integrated, housing closed |
| Number of positions | 6 |
| Pitch | 5 mm |
| Number of rows | 1 |
| Type | Complete housing equipped with 3 screw connections per side |
| Pin layout | Linear pinning |
Electrical properties
| Nominal voltage UN | 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) |
| Nominal current IN | 10 A |
Connection data
| Connection method | Screw connection |
Dimensions
| Dimensional drawing |  |
| Width | 27.5 mm |
| Installed height | 85.5 mm |
| Height NS 35/7,5 | 85.5 mm |
| Depth | 79 mm |
| Length | 79 mm |
| Pitch | 5 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Mounting
| Mounting type | DIN rail mounting |
| Pin layout | Linear pinning |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Green |
