View larger
Images are for illustrative purposes only. Please refer to data sheet for details

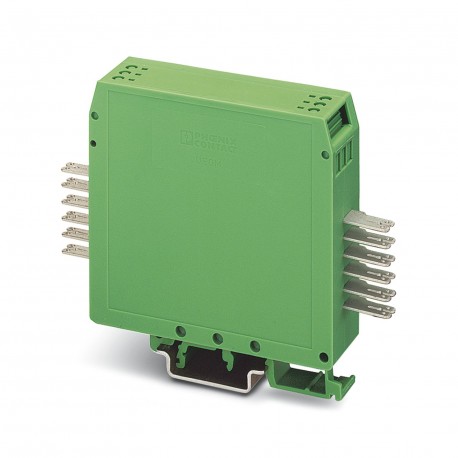

UEGM 25-FS/FS 2792086 PHOENIX CONTACT Electronic housing
UEGM 25-FS/FS
2792086
PHOENIX CONTACT
10 Pcs.
Electronic housing
Electronics housing, for inserting a printed circuit board, fully equipped with 3 screw connections or 6 flat plug connections on each side
Electronic housing, for PCB insertion, fully equipped with 3 screw or 6 tab connections per side
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | UEG |
| Product family | UEGM |
| Type | Connection system integrated, housing closed |
| Number of positions | 12 |
| Type | Complete housing equipped with 6 spade connections per side |
Electrical properties
| Nominal voltage UN | 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) |
| Nominal current IN | 10 A (6.3 mm slip-on connection) |
| 8 A (2.8 mm slip-on connection) |
Dimensions
| Dimensional drawing |  |
| Width | 25 mm |
| Installed height | 85.5 mm |
| Height NS 35/7,5 | 85.5 mm |
| Depth | 101 mm |
| Length | 101 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Green |
