View larger
Images are for illustrative purposes only. Please refer to data sheet for details

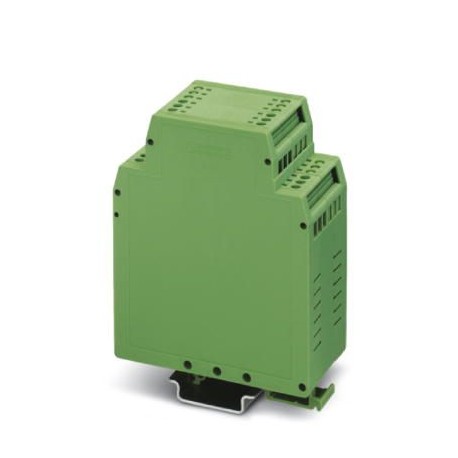

UEGH 40/2 2757131 PHOENIX CONTACT Electronic housing
UEGH 40/2
2757131
PHOENIX CONTACT
10 Pcs.
Electronic housing
Double-deck electronics housing fully equipped with 12 screw connections on each side for two printed circuit boards
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2757131 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 727 (C-1-2013) |
| GTIN | 4017918104825 |
| Weight per Piece (excluding packing) | 119.210 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Technical data
| Connection in acc. with standard | CUL |
|---|---|
| Nominal voltage UN | 300 V |
| Nominal current IN | 10 A |
| AWG/kcmil | 30-12 |
| Indicator1 | CUL1 |
| Power dissipation without gap | 6.1 W |
| Power dissipation with 20 mm gap | 9.1 W |
| Number of positions | 24 |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 8 mm |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 40 mm |
| Depth (EF000049) | 79 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
