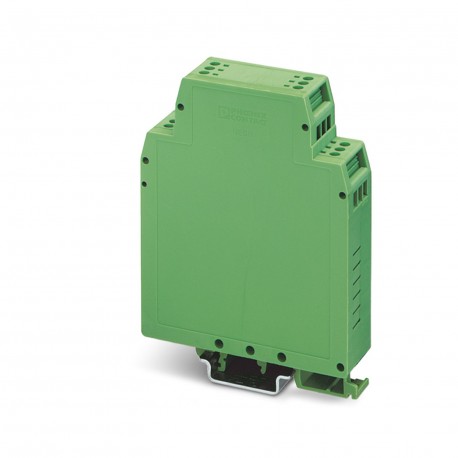

UEGH 27,5-SMD 2757128 PHOENIX CONTACT Electronic housing
UEGH 27,5-SMD
2757128
PHOENIX CONTACT
10 Pcs.
Electronic housing
Double-deck electronics housing, fully equipped with 6 screw connections on each side for a printed circuit board, for the assembly of SMD components
Electronic housing, double level, fully equipped with 6 screw connections per side for one printed circuit board, for mounting of SMD components
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Complete housing |
| Housing type | Complete housing |
| Housing series | UEG |
| Product family | UEGH |
| Type | Connection system integrated, housing closed |
| Number of positions | 12 |
| Pitch | 5 mm |
| Number of rows | 2 |
| Pin layout | Linear pinning |
Electrical properties
| Nominal voltage UN | 500 V |
| Nominal current IN | 10 A |
Connection data
| Connection method | Screw connection |
Dimensions
| Dimensional drawing |  |
| Width | 27.5 mm |
| Installed height | 106.7 mm |
| Height NS 35/7,5 | 106.7 mm |
| Depth | 79 mm |
| Length | 79 mm |
| Pitch | 5 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Mounting
| Mounting type | Soldering |
| Pin layout | Linear pinning |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 27.5 mm |
| Depth (EF000049) | 79 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
