View larger
Images are for illustrative purposes only. Please refer to data sheet for details

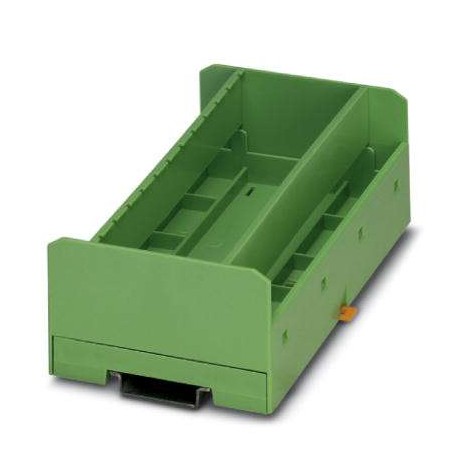

EMG150-LG/O 2906571 PHOENIX CONTACT Electronic housing
EMG150-LG/O
2906571
PHOENIX CONTACT
2 Pcs.
Electronic housing
Electronics housing, for inserting a printed circuit board, without screw or cap connection terminals, with open terminal block
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2906571 |
|---|---|
| Packing unit | 2 pc |
| Minimum order quantity | 2 pc |
| Catalog page | Page 715 (C-1-2013) |
| GTIN | 4017918131357 |
| Weight per Piece (excluding packing) | 107.960 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 150 mm |
| Depth (EF000049) | 75 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
