View larger
Images are for illustrative purposes only. Please refer to data sheet for details

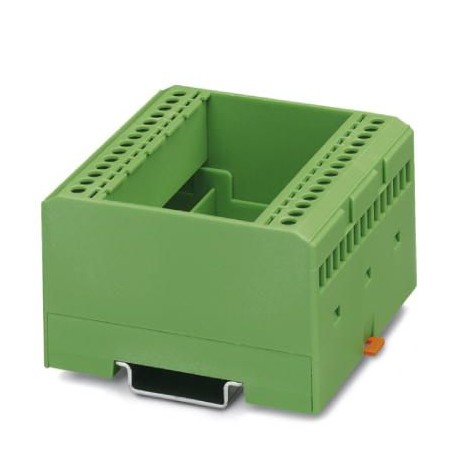

EMG 75-LG 2947378 PHOENIX CONTACT Electronic housing
EMG 75-LG
2947378
PHOENIX CONTACT
5 Pcs.
Electronic housing
Electronics housing, for inserting a printed circuit board, without screw connection terminals or cover
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2947378 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 713 (C-1-2013) |
| GTIN | 4017918082710 |
| Weight per Piece (excluding packing) | 66.550 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Technical data
| Power dissipation without gap | 3.3 W |
|---|---|
| Power dissipation with 20 mm gap | 3.9 W |
| Number of positions | 28 |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 8 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 75 mm |
| Depth (EF000049) | 75 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
