View larger
Images are for illustrative purposes only. Please refer to data sheet for details

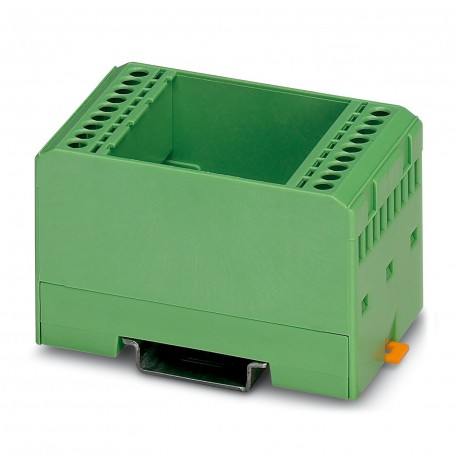

EMG 50-LG 2947242 PHOENIX CONTACT Electronic housing
EMG 50-LG
2947242
PHOENIX CONTACT
5 Pcs.
Electronic housing
Electronics housing, for inserting a printed circuit board, without screw connection terminals or cover
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG |
| Type | Lower part of housing, removable cover optional |
| Number of positions | 18 |
| Pitch | 5 mm |
| Set comprises | 2940045 EMG 50-LG/SET |
| Type | Lower and upper part, with snap-on foot |
Dimensions
| Dimensional drawing |  |
| Width | 50 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 50 mm |
| Depth (EF000049) | 75 mm |
| Material (EF002169) | Other |
| Operating temperature (EF002393) | -40 °C |
| With integrated PCB-mounting connection system (EF003087) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| With ventilation slots (EF007346) | No |
