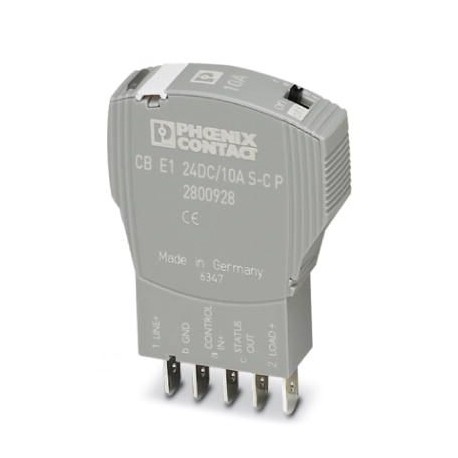

PHOENIX CONTACT CB E1 24DC/10A S-C P CB E1 24DC/10A S-C P 2800928 PHOENIX CONTACT Electronic device circuit breaker

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

CB E1 24DC/10A S-C P 2800928 PHOENIX CONTACT Electronic device circuit breaker

Name: CB E1 24DC/10A S-C P 2800928 PHOENIX CONTACT Electronic device circuit breaker
Brand: PHOENIX CONTACT
SKU: 2800928

Reference: CB E1 24DC/10A S-C P

Code: 2800928

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

Electronic device circuit breaker Interruption. Protec. Electronic, 1 pole, active current limiter, status output and control input, connector for base element.

Categories:
Automation > Device circuit breaker
Over Current Protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	2800928
Packing unit	1 pc
Catalog page	Page 323 (C-4-2017)
GTIN	4046356690843
Weight per Piece (excluding packing)	36.500 g
Custom tariff number	85362010
Country of origin	DE (Germany)

Dimensions

Height	45 mm
Width	12.3 mm
Depth	52 mm

Ambient conditions

Ambient temperature (operation)	-25 °C ... 50 °C (non-condensing)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Humidity test	96 h, 95 % RH, 40 °C
Vibration (operation)	3g (In accordance with IEC 60068-2-6, Test Fc)
Degree of protection	IP30 (Actuation area)

General

Flammability rating according to UL 94	V0
Mounting type	on base element
Color	gray
Number of positions	1
Degree of pollution	2
Type	Male

Electrical data

Fuse type	electronic
Rated surge voltage	0.5 kV
Operating voltage	24 V DC
	18 V DC ... 30 V DC
Nominal current I_N	10 A
Rated insulation voltage U_i	30 V (Load circuit)
Active current limitation	typ. 1.25 x I_N
Closed circuit current I₀	typ. 8 mA (When switched on)
	typ. 11 mA (With status output)
Power dissipation	1.46 W (Nominal operation)
Temperature derating	9 A (at 50 °C)
Tripping method	E (electronic)
Required backup fuse	not required, integrated failsafe element
Dielectric strength	max. 30 V DC (Load circuit)
Voltage drop	120 mV (at I_N)
Shutdown time load circuit	80 ms (see time/current characteristic curve)
Undervoltage shutdown load circuit	< 14 V (typ. OFF)
	> 17 V (typ. ON)
Max. capacitive load load circuit	20000 µF
Output voltage status output	24 V DC
Output current status output	max. 0.2 A (Short-circuit-proof)
Input voltage reset input	max. 30 V DC
Current consumption reset input	typ. 2.6 mA (at 24 V DC)
Auxiliary type of contact	Positive-switching signal output
