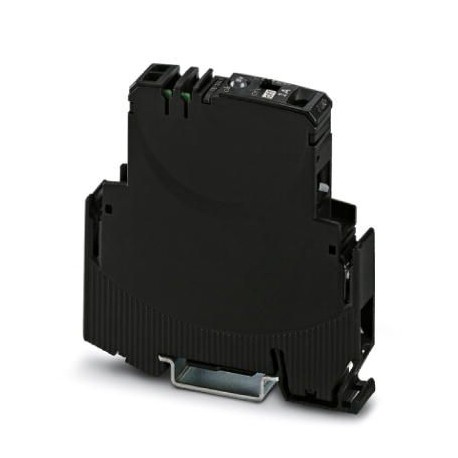

EC-E4 1A 0903032 PHOENIX CONTACT Electronic device circuit breaker

EC-E4 1A

0903032

PHOENIX CONTACT

1 Pcs.

Electronic device circuit breaker Electronic protection switch, signal contact: 1 closed contact, rated current: 1 A

Automation > Device circuit breaker
Over Current Protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0903032
Packing unit6 pc
NoteMade to Order (non-returnable)
Catalog pagePage 326 (C-4-2017)
GTIN4046356328074
Weight per Piece (excluding packing)65.600 g
Custom tariff number85362010
Country of originDE (Germany)

General

Installation instructionsWhen mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor).
Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC).
Parallel connection of multiple circuit breakers is not permitted.
Mounting typeDIN rail: 35 mm
Colorblack
Flammability rating according to UL 94V0

Electrical data

Fuseelectronic
Fuse typeAutomatic device
Rated surge voltage0.5 kV
Operating voltage24 V DC
18 V DC ... 32 V DC
Nominal current IN1 A
Required backup fusenot required, integrated failsafe element
Dielectric strengthmax. 32 V DC (Load circuit)
Degree of pollution2
Switching capacity ICNActive current limitation
Closed-circuit current range I0typ. 25 mA ±5 mA (When switched on)

Dimensions

Height83 mm
Width12.5 mm
Depth80 mm
Height NS 35/7,583 mm
Height NS 35/1590.5 mm

Ambient conditions

Degree of protectionIP20 (Housing)
Ambient temperature (operation)0 °C ... 50 °C (non-condensing)

Connection data

Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²
Connection methodScrew connection
Stripping length10 mm
Screw threadM4
Tightening torque max1.2 Nm

Standards and Regulations

Standards/specificationsUL 508
CSA 22.2 No. 14
UL 2367
CSA 22.2 No. 142
CSA 22.2 No. 213
UL 1604

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
