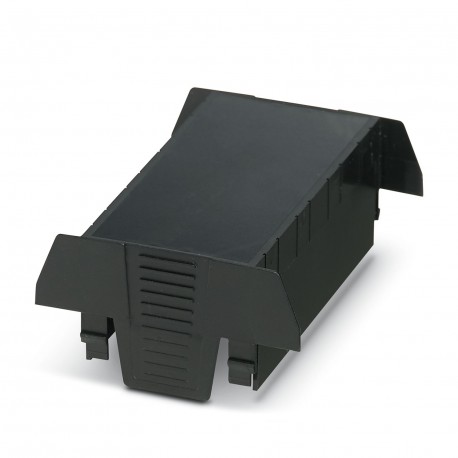

PHOENIX CONTACT EH 90 F-C DS/ABS-PC BK9005 EH 90 F-C DS/ABS-PC BK9005 1074882 PHOENIX CONTACT DIN rail housing, Upper part, connection opening on both .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EH 90 F-C DS/ABS-PC BK9005 1074882 PHOENIX CONTACT DIN rail housing, Upper part, connection opening on both ..

EH 90 F-C DS/ABS-PC BK9005

1074882

PHOENIX CONTACT

1 Pcs.

DIN rail housing, Upper part, connection opening on both sides, width: 90.1 mm, height: 74.65 mm, depth: 36.95 mm, color: black (9005) Rail box, Top of housing, flat design, connection hole on both sides, width: 90.1 mm, height: 74.65 mm, depth: 36.95 mm, color: black (9005) DIN rail housing, Upper housing part, flat design, connection opening on both sides, width: 90.1 mm, height: 74.65 mm, depth: 36.95 mm, color: black (similar RAL 9005)

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteRefer to the data sheet for the range in the download area.
Product properties
Product typeUpper housing part
Housing typeDIN rail housing
Housing seriesEH
Product familyEH..F..ABS-PC..
TypeUpper housing part, flat design, connection opening on both sides
Ventilation openings presentno
Data management status
Article revision00
Dimensions
Dimensional drawinghnpapkqyxn.jpg
Width90.1 mm
Height74.65 mm
Depth36.95 mm
Depth from base support surface19.95 mm
Material specifications
Color (Housing)black (RAL 9005)
Flammability rating according to UL 94V0
Housing materialABS-PC
Surface characteristicsuntreated
Environmental and real-life conditions
Ambient conditions
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 80 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 80 °C
Relative humidity (storage/transport)95 %
PCB data
Type of PCB mountSlot
Mounting
Mounting typeSnap in

ETIM for 1074882 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Surface finishing (EF006569) Other
Colour (EF000007) Black
RAL-number (EF000116) 9005
Width (EF000008) 90.1 mm
Height (EF000040) 74.65 mm
Depth (EF000049) 36.95 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
