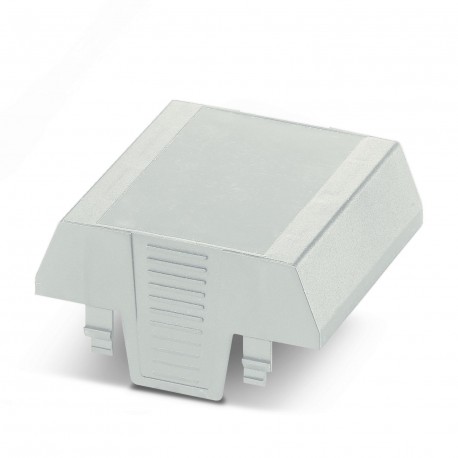

EH 70-C CS/ABS-PC GY7035 1071127 PHOENIX CONTACT DIN rail housing, Upper part, without connection opening, w..
EH 70-C CS/ABS-PC GY7035
1071127
PHOENIX CONTACT
1 Pcs.
DIN rail housing, Upper part, without connection opening, width: 70.1 mm, height: 75 mm, depth: 36.95 mm, color: light gray (7035)
Rail box, Top, high design, no connection hole, width: 70.1 mm, height: 75 mm, depth: 36.95 mm, color: light grey (7035)
DIN rail housing, Upper housing part, tall design, no connection opening, width: 70.1 mm, height: 75 mm, depth: 36.95 mm, color: light gray (similar RAL 7035)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
Product properties
| Product type | Upper housing part |
| Housing type | DIN rail housing |
| Housing series | EH |
| Product family | EH..ABS-PC.. |
| Type | Upper housing part, tall design, no connection opening |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 70.1 mm |
| Height | 75 mm |
| Depth | 36.95 mm |
| Depth from base support surface | 19.95 mm |
Material specifications
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing material | ABS-PC |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Type of PCB mount | Latching |
Mounting
| Mounting type | Snap in |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 70.1 mm |
| Height (EF000040) | 75 mm |
| Depth (EF000049) | 36.95 mm |
