PHOENIX CONTACT EH 52,5-C SS/ABS BK9005 EH 52,5-C SS/ABS BK9005 2201746 PHOENIX CONTACT Upper part of housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

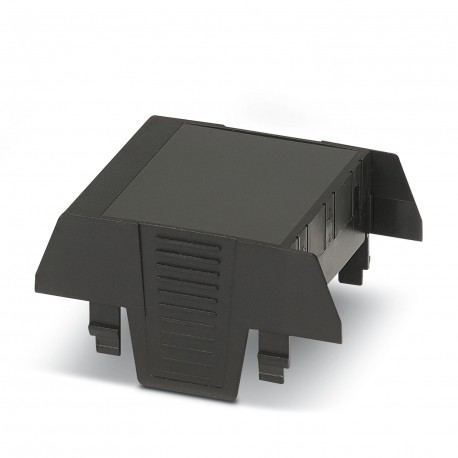

EH 52,5-C SS/ABS BK9005 2201746 PHOENIX CONTACT Upper part of housing

EH 52,5-C SS/ABS BK9005

2201746

PHOENIX CONTACT

10 Pcs.

Upper part of housing Rail box, Top of housing, tall design, connection hole on one side, connection hole on one side, width: 52.6 mm, height: 75 mm, depth: 36.95 mm, color: black (9005) DIN rail housing, Upper housing part, tall design, connection opening on one side, connection opening on one side, width: 52.6 mm, height: 75 mm, depth: 36.95 mm, color: black (similar RAL 9005)

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteRefer to the data sheet for the range in the download area.
Product properties
Product typeUpper housing part
Housing typeDIN rail housing
Housing seriesEH
Product familyEH..ABS..
TypeUpper housing part, tall design, connection opening on one side
Ventilation openings presentno
Dimensions
Dimensional drawinghnpapkqyxn.jpg
Width52.6 mm
Height75 mm
Depth36.95 mm
Depth from base support surface19.95 mm
Material specifications
Color (Housing)black (RAL 9005)
Flammability rating according to UL 94HB
Housing materialABS
Surface characteristicsuntreated
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 Hz ... 58.1 Hz)
Acceleration2g (58.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-11:2014-02
Temperature850 °C
Time of exposure30 s
Thermal stability / ball thrust test
SpecificationIEC 60695-10-2:2014-02
Temperature80 °C
Test duration1 h
Force20 N
Mechanical strength / tumbling barrel
SpecificationIEC 60998-1:2002-12
Height of fall50 cm
Frequency10
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeHalf-sine
Acceleration15g
Shock duration11 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
SpecificationIEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 80 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 80 °C
Relative humidity (storage/transport)95 %
PCB data
Type of PCB mountSlot
Mounting
Mounting typeSnap in
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 2201746 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Black
RAL-number (EF000116) 9005
Width (EF000008) 52.6 mm
Height (EF000040) 75 mm
Depth (EF000049) 36.95 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
