View larger
Images are for illustrative purposes only. Please refer to data sheet for details

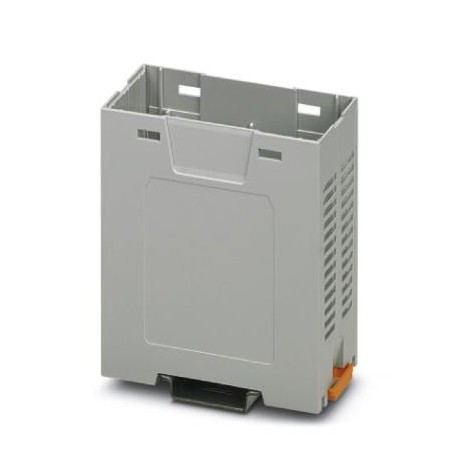

EH 35-B/ABS GY7035 2201738 PHOENIX CONTACT Mounting base housing
EH 35-B/ABS GY7035
2201738
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail box, Lower part of the housing with base anchorage, high design, with ventilation slits, width: 35.1 mm, height: 75 mm, depth: 87.3 mm, color: light gray (Similar RAL 7035), cross bridge: without bus connector, number of poles cross connector: not relevant
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2201738 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4046356908252 |
| Weight per Piece (excluding packing) | 50.040 g |
| Custom tariff number | 85472000 |
| Country of origin | IN (India) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 35.1 mm |
| Height (EF000040) | 75 mm |
| Depth (EF000049) | 87.3 mm |
