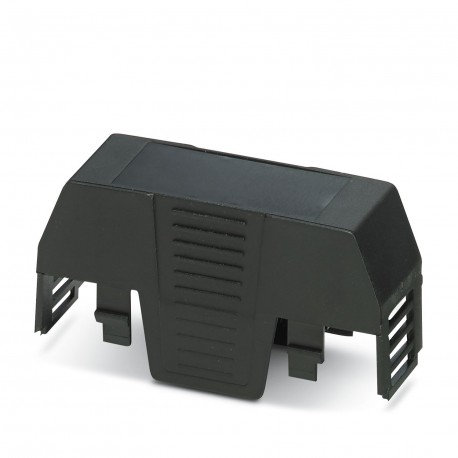

PHOENIX CONTACT EH 22,5 F-C CS/ABS-PC BK9005 EH 22,5 F-C CS/ABS-PC BK9005 1074970 PHOENIX CONTACT DIN rail housing, Upper part, Without connection openin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EH 22,5 F-C CS/ABS-PC BK9005 1074970 PHOENIX CONTACT DIN rail housing, Upper part, Without connection openin..

EH 22,5 F-C CS/ABS-PC BK9005

1074970

PHOENIX CONTACT

1 Pcs.

DIN rail housing, Upper part, Without connection opening, with vents, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: black (9005) Rail box, Top of housing, flat design, no connection hole, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: black (9005)

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1074970
Packing unit1
GTIN4055626777900
Custom tariff number85389099

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Item properties

Brief article descriptionUpper part of housing
TypeEH 22,5 F-C CS/ABS-PC BK9005
Order No.1074970
Housing typeDIN rail housing
Housing seriesEH
TypeUpper part
Max. IP code to attainIP20
Mounting typeSnap in
Ventilation openings presentyes
Back to top

Dimensions

Dimensional drawing
Width [ w ]22.6 mm
Height [ h ]75.26 mm
Depth [ d ]36.95 mm
Back to top

Material data

Color (RAL)black (9005)
Flammability rating according to UL 94V0
Housing materialABS-PC
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 80 °C
Ambient temperature (operation)-40 °C ... 80 °C (depending on power dissipation)
Back to top

PCB data

Type of PCB mountLatching
Back to top

General information

Type of noteAssembly instruction:
NoteRefer to the data sheet for the range in the download area.
Back to top

Packaging information

Pieces per package10
Denomination packing unitsPcs.
Back to top

Standards and regulations

Flammability rating according to UL 94V0
Back to top

Classifications

eCl@ss

eCl@ss 5.027180506
eCl@ss 5.127180500
eCl@ss 6.027180800
eCl@ss 7.027182702
eCl@ss 8.027182702
eCl@ss 9.027182702
Back to top

ETIM

ETIM 4.0EC001031
ETIM 5.0EC001031
ETIM 6.0EC001031
ETIM 7.0EC001031
Back to top

UNSPSC

UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1074970 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Surface finishing (EF006569) Other
Colour (EF000007) Black
RAL-number (EF000116) 9005
Width (EF000008) 22.6 mm
Height (EF000040) 75.26 mm
Depth (EF000049) 36.95 mm
