EH 22,5-C DS/ABS-PC GY7035 1025865 PHOENIX CONTACT DIN rail housing, Upper part, connection opening on both ..

EH 22,5-C DS/ABS-PC GY7035

1025865

PHOENIX CONTACT

10 Pcs.

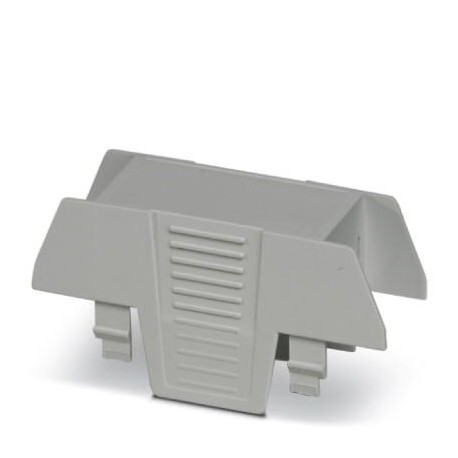

DIN rail housing, Upper part, connection opening on both sides, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: light gray (7035) Rail box, Top of housing, tall design, connection hole on both sides, connection hole on both sides, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: light gray (7035)

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1025865
Packing unit1
GTIN4055626517698
Custom tariff number85389099

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Item properties

Brief article descriptionUpper part of housing
TypeEH 22,5-C DS/ABS-PC GY7035
Order No.1025865
Housing typeDIN rail housing
Housing seriesEH
TypeUpper part
Max. IP code to attainIP20
Mounting typeSnap in
Ventilation openings presentno
Max. number of positions10 (pitch: 3.5 mm)
Back to top

Dimensions

Dimensional drawing
Width [ w ]22.6 mm
Height [ h ]75.26 mm
Depth [ d ]36.95 mm
Depth from base support surface [d]19.95 mm
Back to top

Material data

Color (RAL)light gray (7035)
Flammability rating according to UL 94V0
Housing materialABS-PC
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 80 °C
Ambient temperature (operation)-40 °C ... 80 °C (depending on power dissipation)
Back to top

PCB data

Mounting positionVertical (horizontal DIN rail)
Type of PCB mountLatching
Back to top

General information

Type of noteAssembly instruction:
NoteRefer to the data sheet for the range in the download area.
Back to top

Packaging information

Pieces per package10
Denomination packing unitsPcs.
Back to top

Standards and regulations

Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027180401
eCl@ss 4.127180401
eCl@ss 5.027180506
eCl@ss 5.127180500
eCl@ss 6.027180800
eCl@ss 7.027182702
eCl@ss 8.027182702
eCl@ss 9.027182702
Back to top

ETIM

ETIM 3.0EC001031
ETIM 4.0EC001031
ETIM 5.0EC001031
ETIM 6.0EC001031
ETIM 7.0EC001031
Back to top

UNSPSC

UNSPSC 6.0131261501
UNSPSC 7.090131261501
UNSPSC 1131261501
UNSPSC 12.0131261501
UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1025865 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Width (EF000008) 22.6 mm
Height (EF000040) 75.26 mm
Depth (EF000049) 36.95 mm
